Categories

ImageKit.NET

ImageKit®.NET3

.NET Image Processing Developer's Toolkit

Touch screen functions

New and improved annotation functions

New specialized toolbar controls for annotations

Full 64 bit support. Plug-in files support 64 bit too!!!

     (*To scan in 64 bit, you must have a 64 bit scanner)

Assemblies for .NET 2.0 to 3.5 and for .NET 4.0 and above

Supports VS2015, VS2013, VS2012, VS2010, VS2008, VS2005  New!

Supports both WinForm and WebForm applications

100% managed .NET component.

     (*Specialized image formats supported with WinAPI plugin files)

New and improved scan functions  New!

Multipage TIFF file functions added!  New!

Supports ClickOnce Deployment

Includes .NET Class Library

The ImageKit.NET3 is comprehensive image processing component developed and distributed by Newtone Corporation. The ImageKit.NET3 is a 100% native .NET component that allows application programmers to quickly and easily add powerful imaging capabilities to their .NET applications. Popular around the world, the ImageKit.NET3 continues our tradition of excellence in software development toolkits.

In this latest version of our ImageKit series, sophisticated image annotation capabilities with specialized annotation toolbar controls that allow you to annotate images quickly and easily. Now, not only can you use method calls to add annotation objects to images, you can also access these same methods via the toolbar controls to create and manipulate annotation objects visually without writing excessive code. All annotation information can be saved seperately in an annotation file. Annotations saved in this way can be loaded at a later time onto any image. Embed annotations into images, edit annotation content, alter annotation shape, rotate them, save them, and more. It is easy with the new ImageKit.NET3.

Of course the ImageKit.NET3 still contains all of the capabilities of earlier versions so that you can build programs that retrieve images from TWAIN scanners and digital cameras, load and save images in a variety of formats, apply numerous image filters and transformations, resize, rotate, and compose images, display thumbnails and much much more.

The ImageKit.NET3 contains both Windows Form and Web Form controls and supports Visual Studio 2005 / 2008 / 2010 / 2012 / 2013 / 2015. It supports the project builds for your .NET environment by providing assemblies for .NET Framework 2.0 through 3.5 and assemblies for .NET Framework 4.0 and above.

There are numerous sample programs included with the ImageKit.NET3 illustrating the most common imaging tasks. Each sample shows one or two tasks, keeping the sample programs easy to understand and allowing you to use the samples to aid in building your imaging applications. Our technical support team is ready to assist you in your endeavors to build the highest quality image processing applications.

List of major functionality ImageKit7
ActiveX
ImageKit8
ActiveX
ImageKit9
ActiveX
ImageKit
.NET
ImageKit
.NET2
ImageKit
.NET3
Application Development Environment
Supports 64 bit Application Development (64 bit scannnig supported with 64 bit scan driver)
Supports 64 bit Application Development (but not scanning or plug-in functions)
Supports Visual Studio 2003 (100% .NET Component)
Supports Visual Studio 2005/2008 (100% .NET Component)
Supports Visual Studio 2010 / 2012 / 2013 (100% .NET Component)
Supports Visual Studio 6.0 (ActiveX Component)
Supports Visual Studio 2002 / 2003 (COM Wrapper)
Supports Visual Studio 2005 / 2008 / 2010 (COM Wrapper)
Supports Visual Studio 2012 / 2013 (COM Wrapper)
Supports ASP.NET
Supports Classic ASP
Visual Studio 2003 Windows Form Control, Web Form Control
Visual Studio 2005 / 2008 Windows Form Control, Web Form Control
Visual Studio 2010 / 2012 / 2013 Windows Form Control, Web Form Control
Visual Studio 2002 / 2003 Windows Form Control (COM Wrapper)
Visual Studio 2005 / 2008 / 2010 Windows Form Control (COM Wrapper)
Visual Studio 2012 / 2013 Windows Form Control (COM Wrapper)
Includes .NET Class Library
Supports "Click Once" deployment
Supports "No Touch" deployment
Supports CAB file download to web browser
Backward Compatibility Controls   Web Form
Seperate controls provided for compatibility with earlier versions: Common Control, Display Control, Effect Control, File Control, Print Control, Scan Control

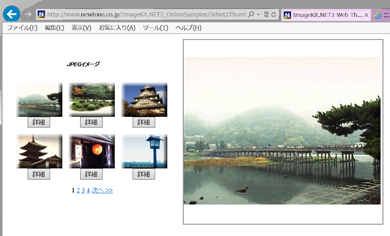

Web Form ImageKit Control   Web Form
Display images in the ImageKit Control and Pan Window
Load and save various types of images
Image thumbnail selection and display
Image Display Functions   Windows Form
Display raster and vector images simultaneously in seperate display layers
Display mouse coordinates in tool tip
Scroll using mouse drag
Display 1-bit color images in high quality
Display 4-bit and 8-bit grayscale images in high quality
Scale, stretch, actual size, fit to height, and fit to width display modes
Set initial display location
Pan window functions for both raster and vector images
Scroll bar control
Select an area on the image for processing
Display a graduated scale
Display a grid
Raster image editing toolbar
Vector image editing toolbar

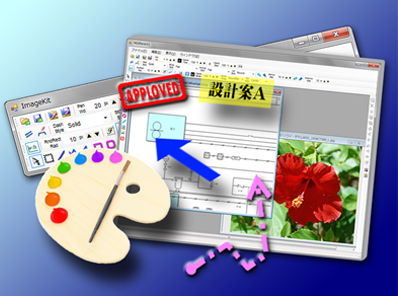

Annotation Functions   Windows Form
Can draw these annotation objects on the base image: Line, Polyline, Polygon, Rectangle, Ellipse, Pen, Text, and Image objects.
Can draw annotation Rounded Rectangle and Stamp annotation objects on the base image.
Can set level of opacity for forecolor and backcolor.
Supports style settings for line related annotation objects. These settings include: arrow caps, dash style, line join style, and cap style.
Annotation objects can be moved, edited, rotated, deleted, copied and pasted, after they have been drawn
Annotation object can be cut and pasted
Annotation object's Z-order can be changed
Annotation object information can be saved to a seperate annotation file (xml format)
Annotation object information can be loaded from file and drawn on any image displayed in the ImageKit Control
Annotation objects can be rasterized and embedded into the image
Annotation and editing toolbar included
Annotation setting, drawing, editing, and function toolbars included
Touch Screen Functions   Windows Form
Pinch in and pinch out capability
Scroll ImageKit control by touch
Scroll Thumbnail control by touch
Thumbnail Functions   Windows Form
Has a Thumbnail Control
Can change the order that thumbnail image are displayed
Can delete specifed thumbnail images
Can customize the thumbnail dialog
Provides a wide range of options for displaying thumbnails
Load file event available
Supports the display of custom pattern
Can select multiple thumbnails at the same time
Supports drag and drop
Thumbnail file saves thumbnail information for fast loading
Effect Functions   Windows Form
Embed and retrieve digital watermark
Create new images
Select and process regions on the image
Layer and paste images together
Create panorama images
Deskew image data
Duplicate images, copy and paste images to the clipboard, adjusted sharpness, noise reduction, blur, mosaic, outline, emboss, antialias, custom filter, adjust chromance, adjust RGB and YCrCb gamma, level, reverse, spline, increase color, decrease color, enlarge, reduce, rotate, affine adjustment and more
Supports variety of filters including: Oil Paint, Canvas, Glasstile, Lens, Ripple, Wave, Whirlpinch, Motion Blur
Scan Functions   Windows Form
Select Scan Device
Can use scanner manufacturer's user interface
Can build your own custom user interface
Continuous scanning support through auto document feeder or digital camera
Set scan conditions in custom-built scan interface
Retrieve scanning information
Hook into various scanning events for each scan
Supports file transfer
Supports memory transfer (JPEG, PNG)
Set dropout color
Noise filter
Image filter
Automatic paper detection
Deskew
ADF duplex support
Retrieve digital camera thumbnail images
Set and retrieve monochrome halftone
Set scan scale
Set and retrieve paper size
Retrieve valid range of property values for a particular scanner
Moire filter (Epson scanners)
Unsharp mask (Espon scanners)
Dynamic Threshold (Panasonic scanners)
Deskew smoothing (Panasonic scanners)
Multi-stream support (Panasonic scanners)
Character orientation detection (Canon DR scanners)
Skip blank page
Punch hole removal (Canon DR Scanners, Epson Scanners, Panasonic Scanners)
Overscan
Gamma Correction (Epson Scanners)
Focus position adjustment (Epson scanners)
Edge enhancement (sharpness) (Canon DR scanners)
Text enhancement (Canon DR scanners)
B & W / color ratio detection, focus position (Epson scanners)
Reflective scanning of positive file (custom UI), character distinction (Epson scanners)
Document orientation adjustment, multistream (Panasonic scanners)
B & W / color ratio detection, multistream (PFU scanners)
Save scan information to the TWAIN scan driver and use that information to scan
Image File Functions   Windows Form
Supports Unicode file naming
Possible to load from and save to HTTP and FTP servers via URL
Save Exif information (*Does not support all Exif tags)
Select file dialog with preview and file information
Save BMP and JPEG images to PDF Documents
Load BLOB data from and save BLOB data to database
Load and save each color plane seperately
Load and save image data directly from memory
Progress event when loading or saving images
Supported image formats   Windows and Web Form
JPEG2000 / JPEG2000Stream
SVG
SXF(p21/sfc)
DIB(WindowsBMP) 1, 4, 8, 16, 24, 32 bit
DIB (WindowsBMP) RLE4,RLE8, 4, 8 bit
DIB (WindowsBMP) RLE4,RLE8, 4, 8 bit(Load only. Uncompressed BMP can be saved)
JPEG 8-bit grayscale (images can be loaded only), 24 bit color. Supports standard DCT, Exif support (JPEG compression, main and thumbnail images can be loaded only)
JPEG 8-bit grayscale, 24 bit color. Supports standard DCT, progressive DCT. Exif support: JPEG compression, main and thumbnail images can be loaded)
JPEG 8-bit grayscale, 24 bit color. Supports standard DCT, progressive DCT (Progressive DCT is load only but Standard DCT can also be saved). Exif support: JPEG compression, main and thumbnail images can be loaded)
Gif 1, 4, 8 bit. Supports transparency, interlace, multipage loading, gif animation saving
Gif 1, 4, 8 bit. Supports transparency, interlace, multipage loading, gif animation saving (in single page units only)
TIFF 1, 4, 8, 16, 24, and 32 bit. Compression formats supported: Uncompressed Tiff, CCITTRLE, FAX3 (1D and 2D compressed), FAX4, PACKBITS, LZW. Color Mode: Palette, RGB, CMYK. Multipage tiff files can be loaded and saved
TIFF 1, 4, 8, 16, 24, and 32 bit. Compression formats supported: Uncompressed Tiff, CCITTRLE (load only), FAX3 (1D. 2D compressed supports load only), FAX4, PACKBITS, LZW. Color Mode: Palette, RGB, CMYK. Multipage tiff files can be loaded and saved. Tiff compession formats listed here as load only may be saved in other compressions.
PNG 1, 4, 8, and 24 bit. Supports transparency and interlace
PNG 1, 4, 8, and 24 bit. Supports transparency
FPX (Flashpix) 8 bit grayscale, 24 bit color. Supported compression: Uncompressed, Jpeg compression, single color compression
PCX 1, 4, 8, 24 bit
WMF
WMF (load only). Can save as raster image
EMF
EMF (load only). Can save as raster image
DXF (2D)
Drawing functions
Draw bezier curves
Draw rectangles using different brush
Draw rectangle border with focus
Draw text using GDI+ (Solid, Hatch, Texture, Gradiation)
Draw image in window handle (hWnd), set and retrieve color info from specified pixel, retrieve image from device context (Hdc), draw to screen, printer or image handle, fill specified area with specified color, draw image to device context (Hdc), draw line, rectanges, ellipses, polygons, polylines, arcs, chords, pies, rounded rectangles, filled rectangles, text, and others
Printing functions
Enumerate ports, retrieve list of paper sizes, retrieve list of paper trays, list printer resolutions, set default printer
Save printer information into a printer file
Start print job, start print page, end print page, end print job, retrieve height and width of valid print area, list printer names
Slideshow functions
Sort by date, set slideshow border, retreive and set currently displayed slide, loop slideshow, set file types that can be loaded, set folders that can be loaded, reference image folder during execution of slideshow, set slide interval, retrieve total number of slides, set scroll step and direction, set file sort method, clear slide, first, last, next, previous, open, close, start, stop, etc.
Web Camera functions   Windows Form
Capture web camera images (supports AVI format only)
Capture web camera images (supports AVI and WMV formats, can change output size with method call)
Preview available
Preview available (can change preview size with method call)
Play web camera movies
