Pipe Flow Wizard Software - Length Calculator

The Pipe Flow Wizard software will calculate the maximum length of a pipe for a given flow rate and a maximum allowed pressure drop. The software takes in to account pipe friction losses, the pipe material, internal roughness of the pipe, the specified flow rate, the maximum allowed pressure drop, the loss through any fittings, bends, and valves, the fluid density, and the fluid viscosity.



Liquids and Gases

For liquid calculations, the Pipe Flow Wizard software uses the Darcy Weisbach equation with accurate Colebrook-White friction factors, to determine the total friction loss and overall pressure drop in the pipe.



Pipes and Fittings

The Pipe Flow Wizard software includes sets of data (which can be added to) that allows users to easily choose pipe material, pipe diameter, pipe fittings and the fluid to be used in the calculation.



Find Length calculation and results screenshots from the Pipe Flow Wizard Software for Windows.

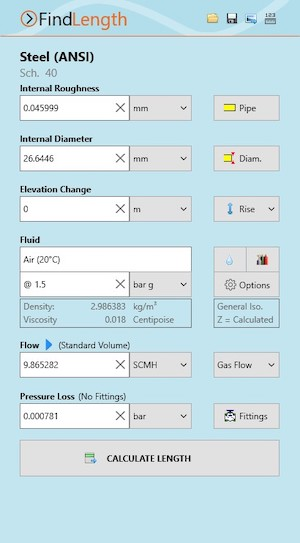

Find Length Calculation Screen (Windows)

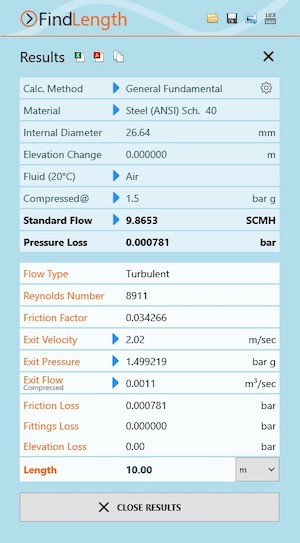

Find Length Results Screen (Windows)



Find Length calculation and results screenshots from the Pipe Flow Wizard Software for macOS.

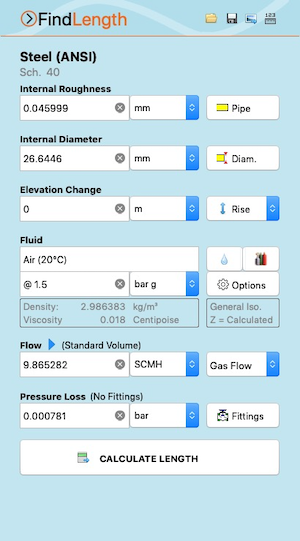

Find Length Calculation Screen (macOS)



Find Length Results Screen (macOS)



Find Length calculation and results screenshots from the Pipe Flow Wizard Software for iOS.

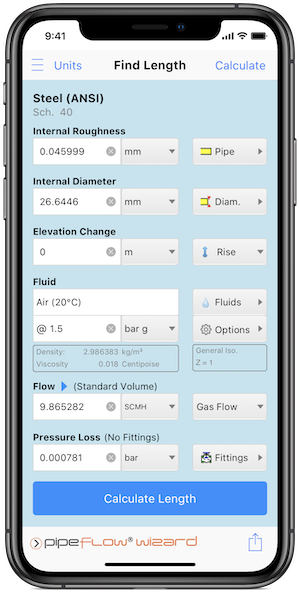

Find Length Calculation Screen (iOS)

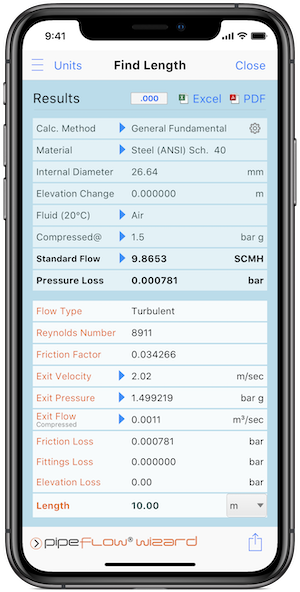

Find Length Results Screen (iOS)
