The Pipe Flow Wizard software helps engineers worldwide with their pipe flow calculations, making it easy to calculate pressure loss, calculate flow rate, size a pipe diameter and calculate pipe length.
It allows them to perform "What If?" calculations on both liquids and gases flowing in a single length of pipe between a start and end elevation, where pipe fittings can be added to represent valves and bends.
Pipe Flow Rate and Pressure Drop Calculator
Do you need to calculate flow rate in a pipe ?
Do you need to calculate pressure drop in a pipe ?
Do you need to size a pipe diameter for a flow rate and pressure loss ?
Do you need to calculate pipe length for a maximum pressure loss ?

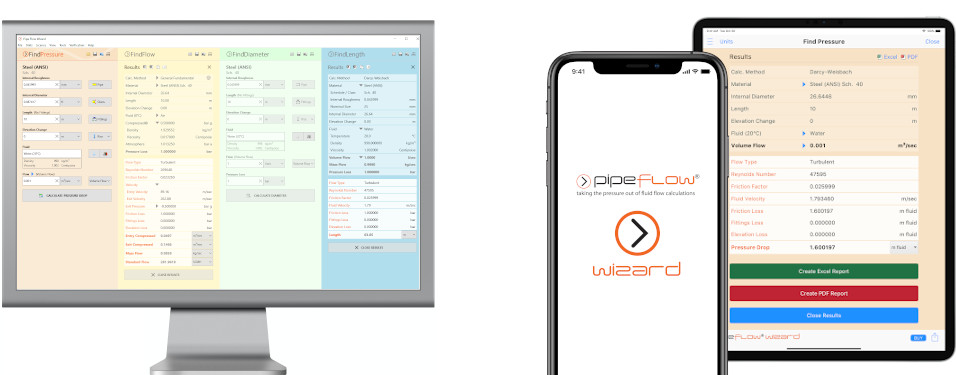

The Pipe Flow Wizard software is a powerful tool that enables you to perform fluid flow calculations on your PC, Mac, iPhone, or iPad.
Pipe Flow Wizard comes with its own Pipe Database, Fitting Database and Fluid Database.
Users can easily select a pipe, fitting, and fluid for use in any of the calculations.
A Gas Data Calculator calculates fluid properties at different tempertaure and pressure conditions.
TDocumentation includes Pipe Flow Wizard User Guides and Verified Results Calculations.

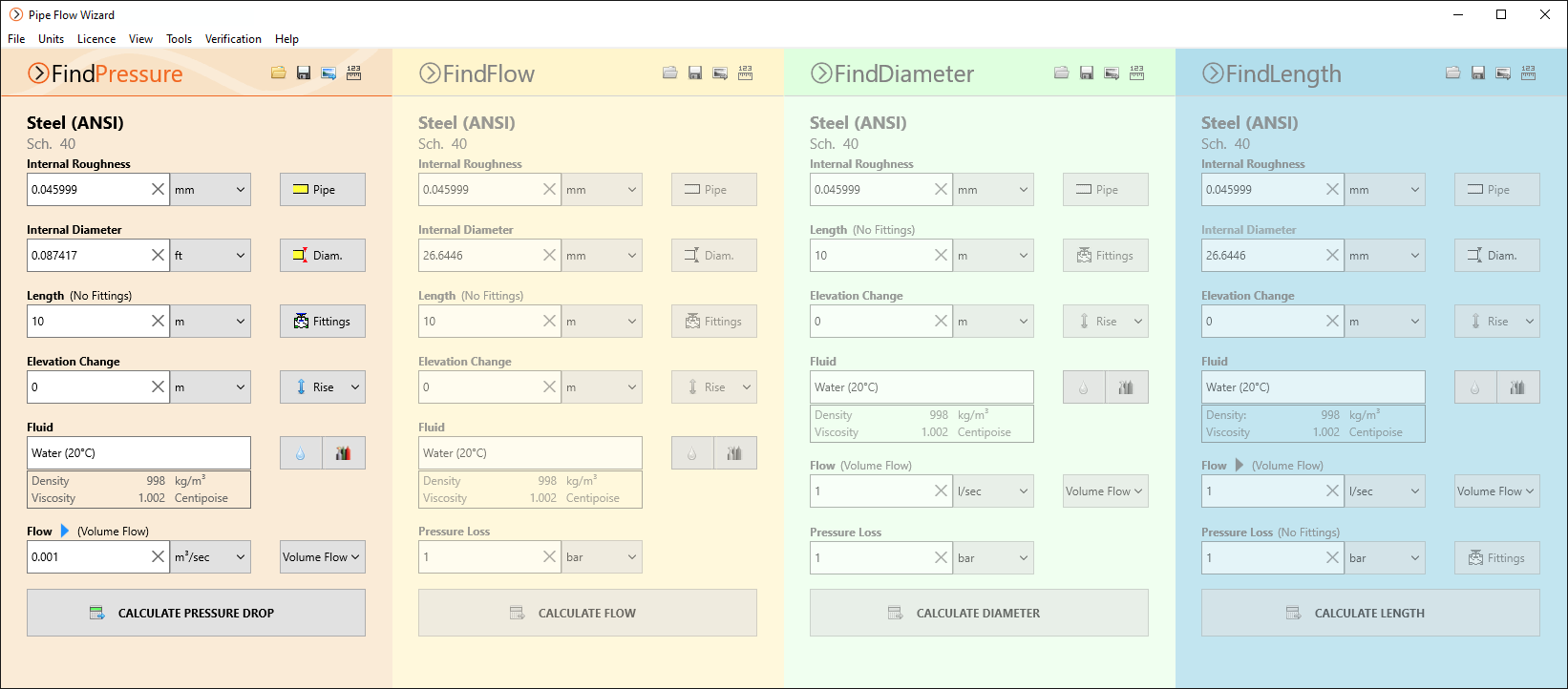

Pipe Flow Wizard for Windows provides a simple yet powerful user interface. With color coded calculation panels & screens, sizable columns or tabbed views and expandable sections to show / hide additional information as needed. Pipe Flow Wizard can be configured to suit the way you work.

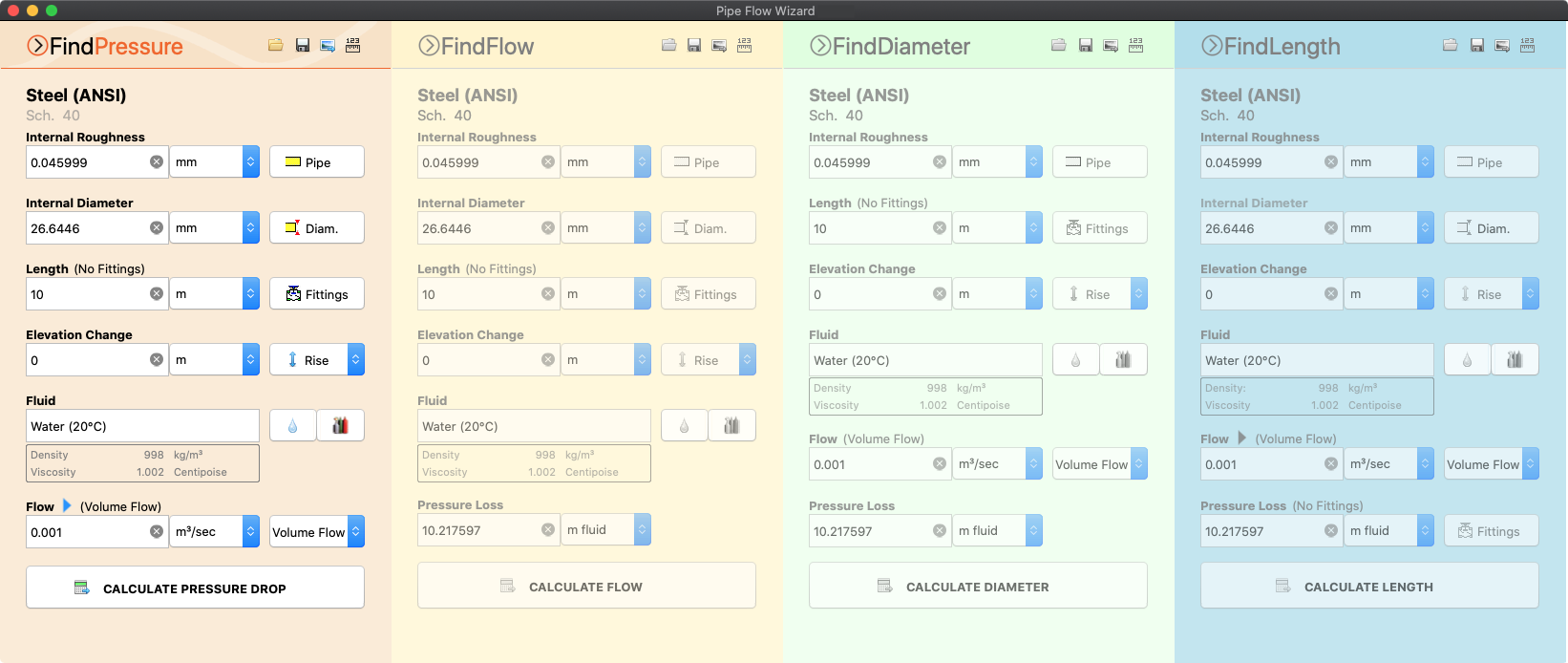

Bring the fluid flow calculation power of Pipe Flow Wizard to your Apple Macintosh computer with Pipe Flow Wizard for macOS. Offering full native comptability with OSX (including Catalina), and the same simple yet powerful user interface that is available for Windows.

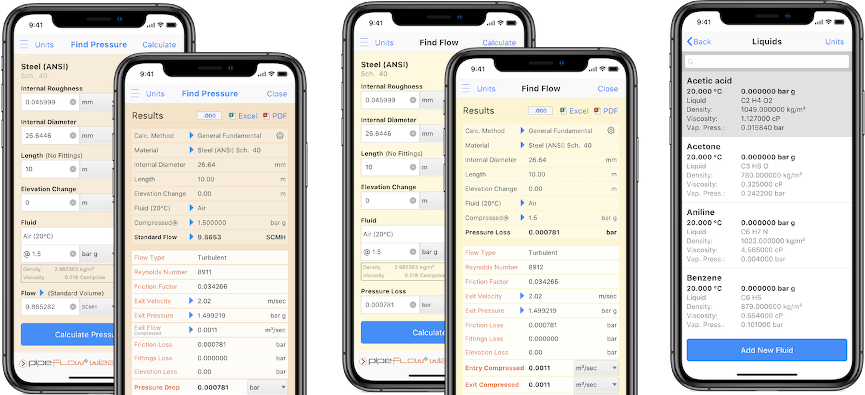

Pipe Flow Wizard for iOS brings the software to your iPhone or iPad. The same color coded calculation panels and expandable sections that are used in the Windows and macOS versions are also used in the mobile version. Share Calcualtions Results as a Wizard data file or as an Excel or PDF Report.
Swipe left or right to move between the Find Pressure, Find Flow, Find Diameter or Find Length screens.
Why Choose Pipe Flow Wizard for Fluid Flow & Pressure Drop Calculations
The Pipe Flow Wizard software is based on the same reliable calculation engine that is used in our premier Pipe Flow Expert software, which is trusted by users in over 100 countries worldwide.
Pipe Flow Wizard' Features Include:

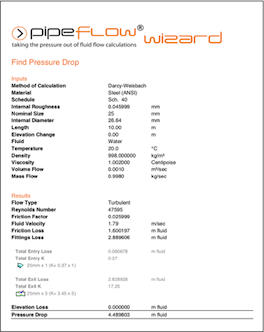

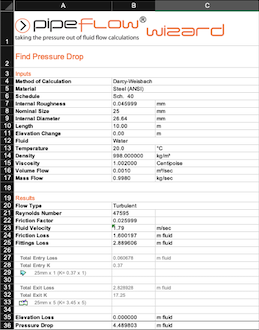

Professional Excel and PDF Reports
Pipe Flow Wizard can generate professional documentation as an Excel or PDF Report, allowing users to easily capture and share calculation results.
Verified Calculation Results
Using it's advanced calculation engine, Pipe Flow Wizard saves time, eliminates errors and gets rid of the headache that comes with setting up complicted spreadsheets for calculating pressure loss and fluid flow calculations. Pipe Flow Wizard results have been verified against 50 published cases.
Save & Share Calculations
Pipe Flow Wizard calculation files are compatible with all platforms thereby enabling calculations to be easily shared regardless of the device being used.
On Windows and macOS, calculation files can be saved and loaded using the the hard disk (or other connected media connected). On iPhone and iPad, calculation files can be saved and loaded from within the App itself, and exported for sharing via e-mail or other third party file sharing services.
