Dynamsoft's C++ Barcode Reader library for Windows allows you to almost instantly embed 1D and 2D barcode reading functionality in your Windows Desktop applications. I am going to demonstrate how to use the C++ barcode reading API for Windows to build a Win32 Console Application for barcode recognition.

START A NEW FILE

New a console application

First, let's open Visual Studio.

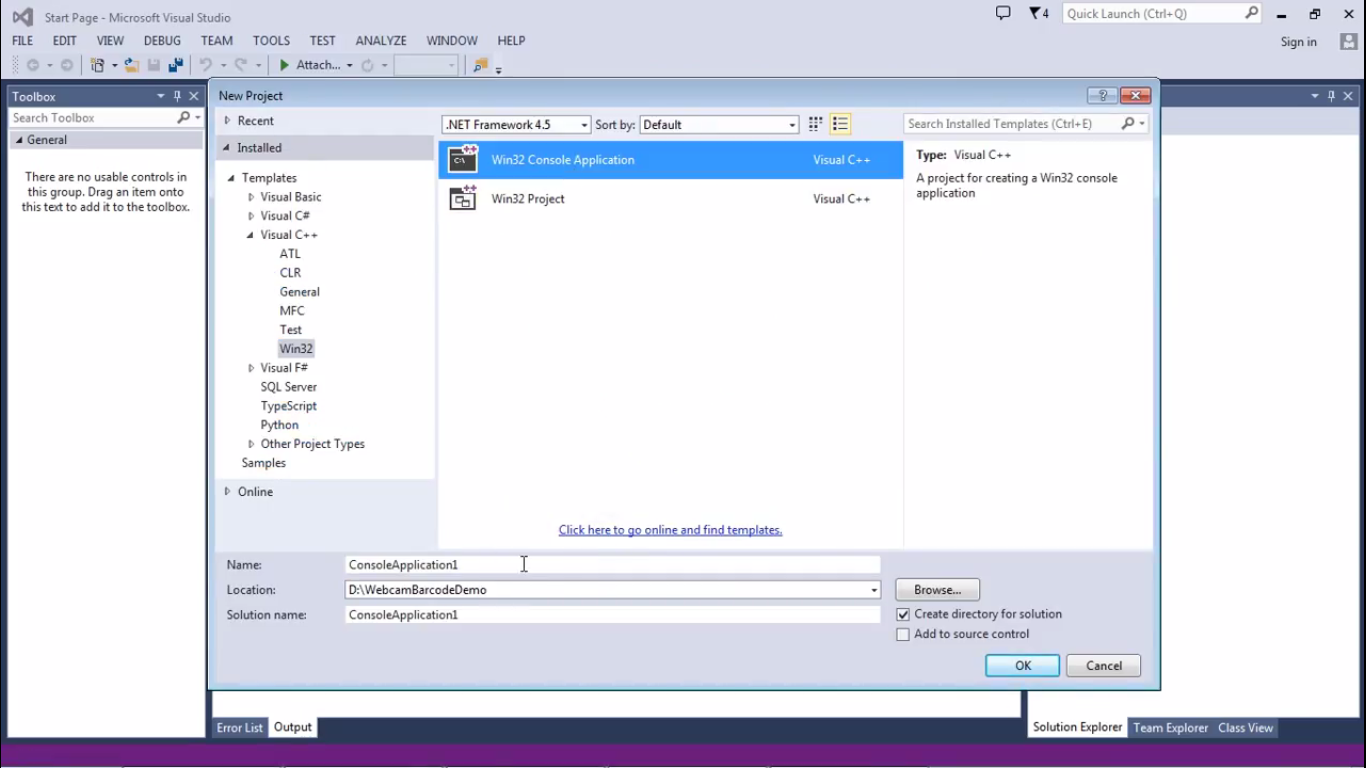

Create an empty Win32 Console Application project through Visual C++>Win32.

Let's name it BarcodeReaderC++API

Add references

Following this guide, first, reference the .H and .LIB files. To make it easier, let's copy the Include folder and the Lib folder from the installation directory to the project.

Change the relative path here.

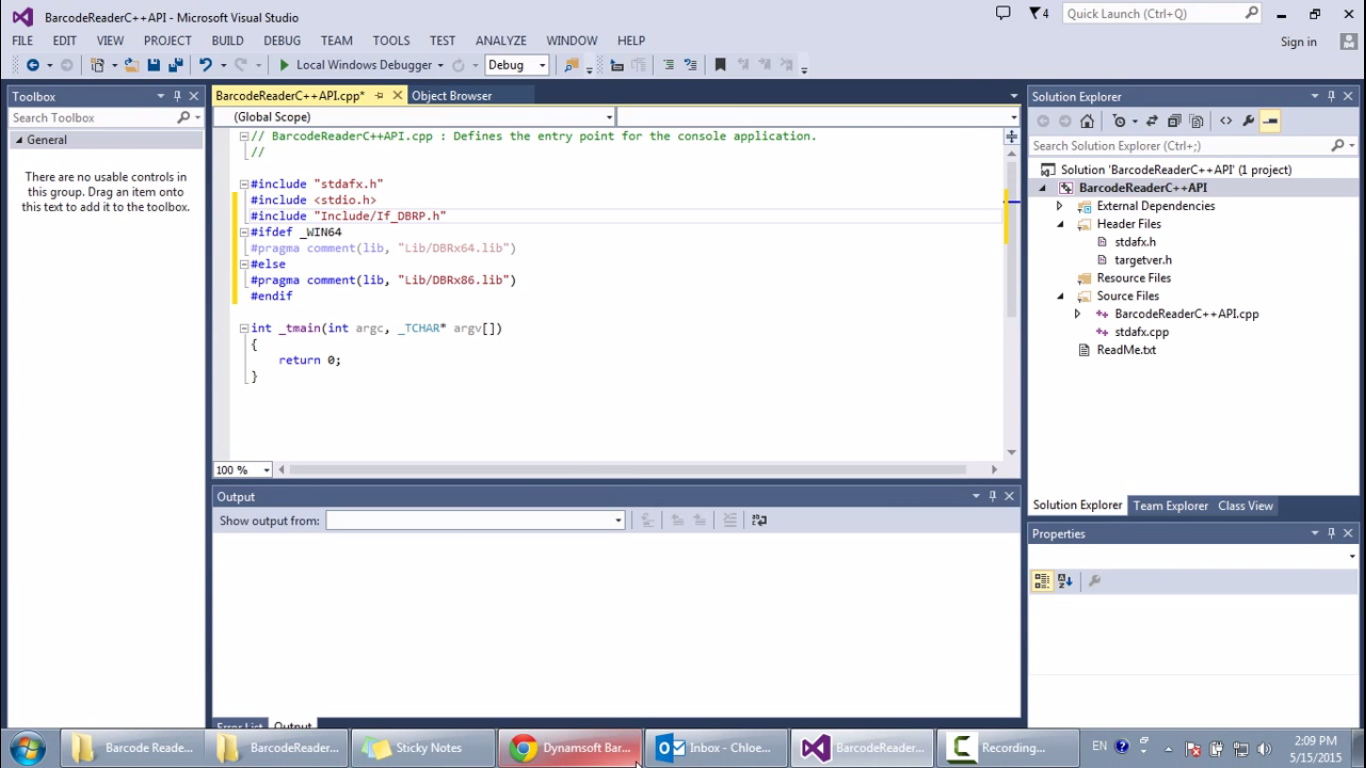

#include

#include "/If_DBRP.h"

#ifdef _WIN64

#pragma comment ( lib, "/x64/DBRx64.lib" )

#else

#pragma comment ( lib, "/x86/DBRx86.lib" )

#endif

Copy the main function

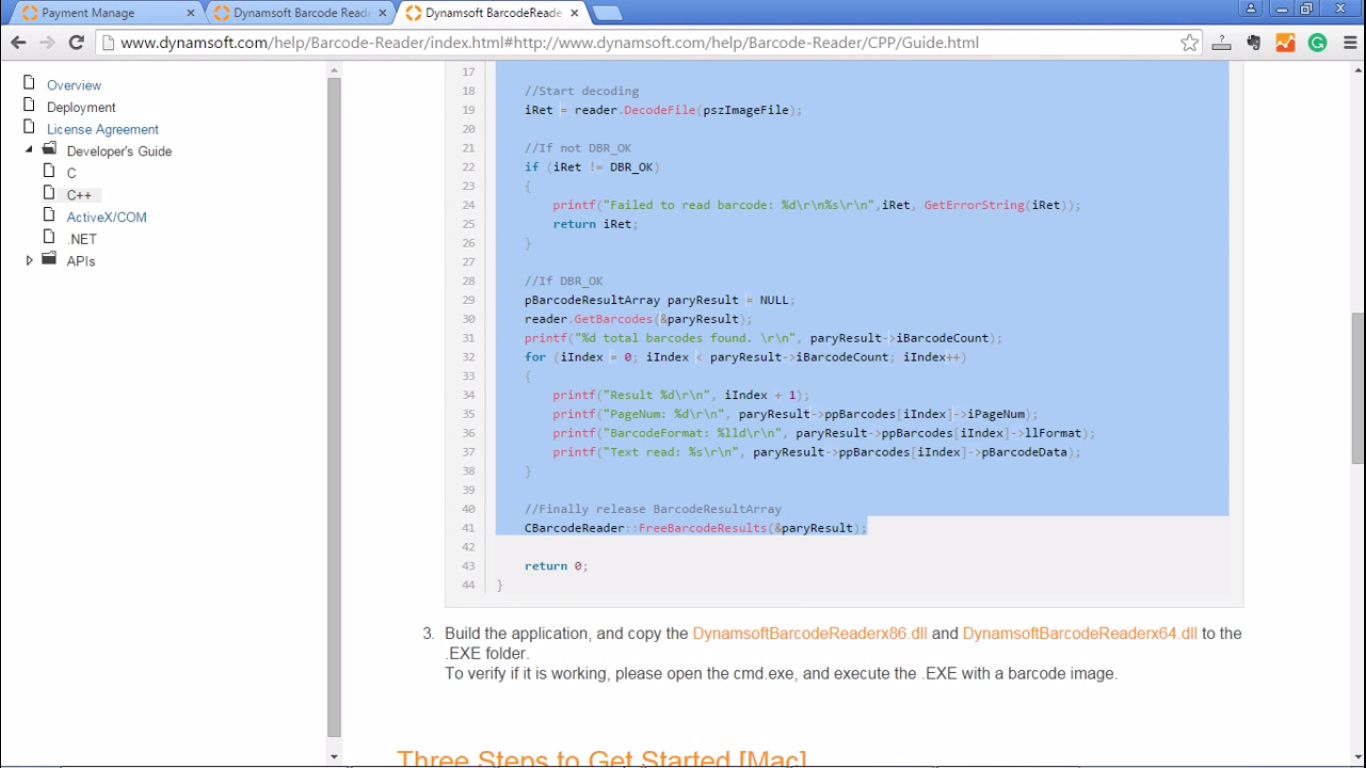

Next, insert the following code to the main function.

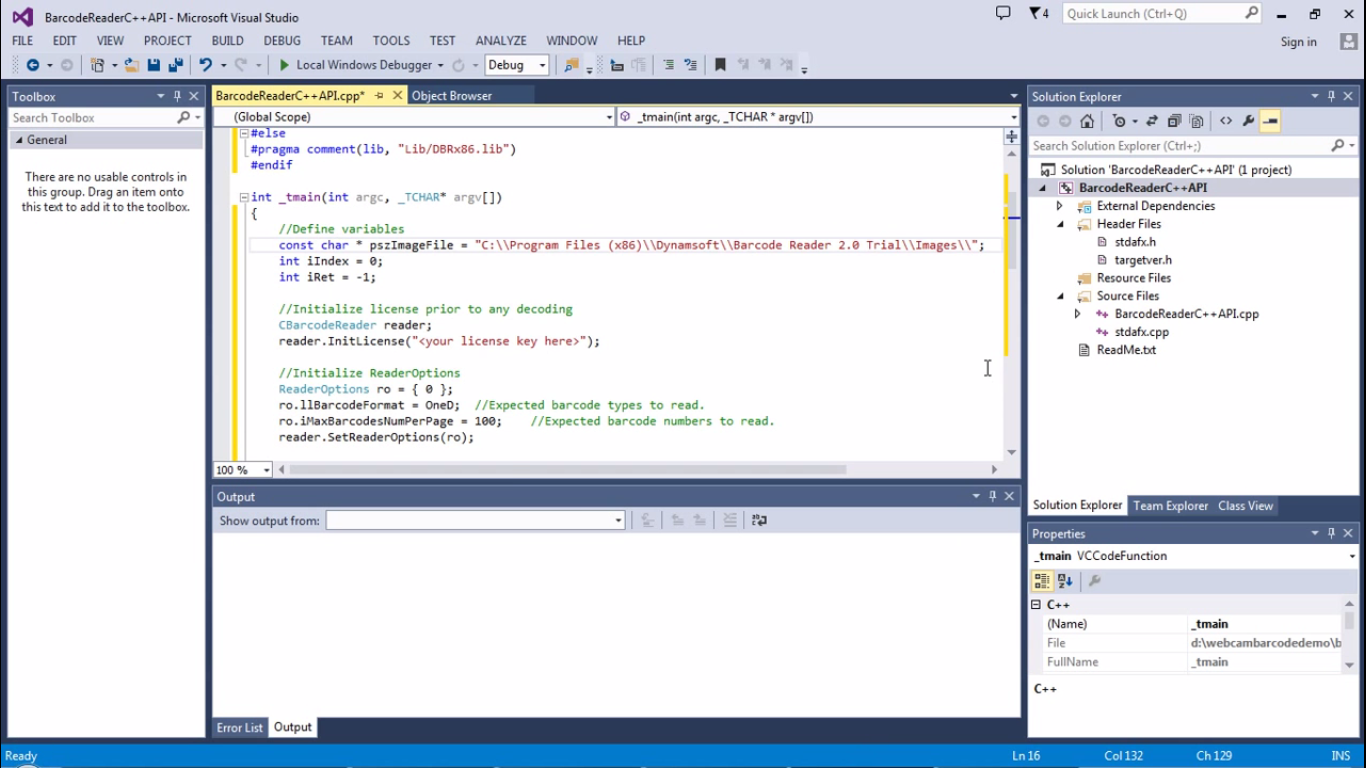

//Define variables

const char * pszImageFile = "";

int iIndex = 0;

int iRet = -1;

//Initialize license prior to any decoding

CBarcodeReader reader;

reader.InitLicense("");

//Initialize ReaderOptions

ReaderOptions ro = {0};

ro.llBarcodeFormat = OneD; //Expected barcode types to read.

ro.iMaxBarcodesNumPerPage = 100; //Expected barcode numbers to read.

reader.SetReaderOptions(ro);

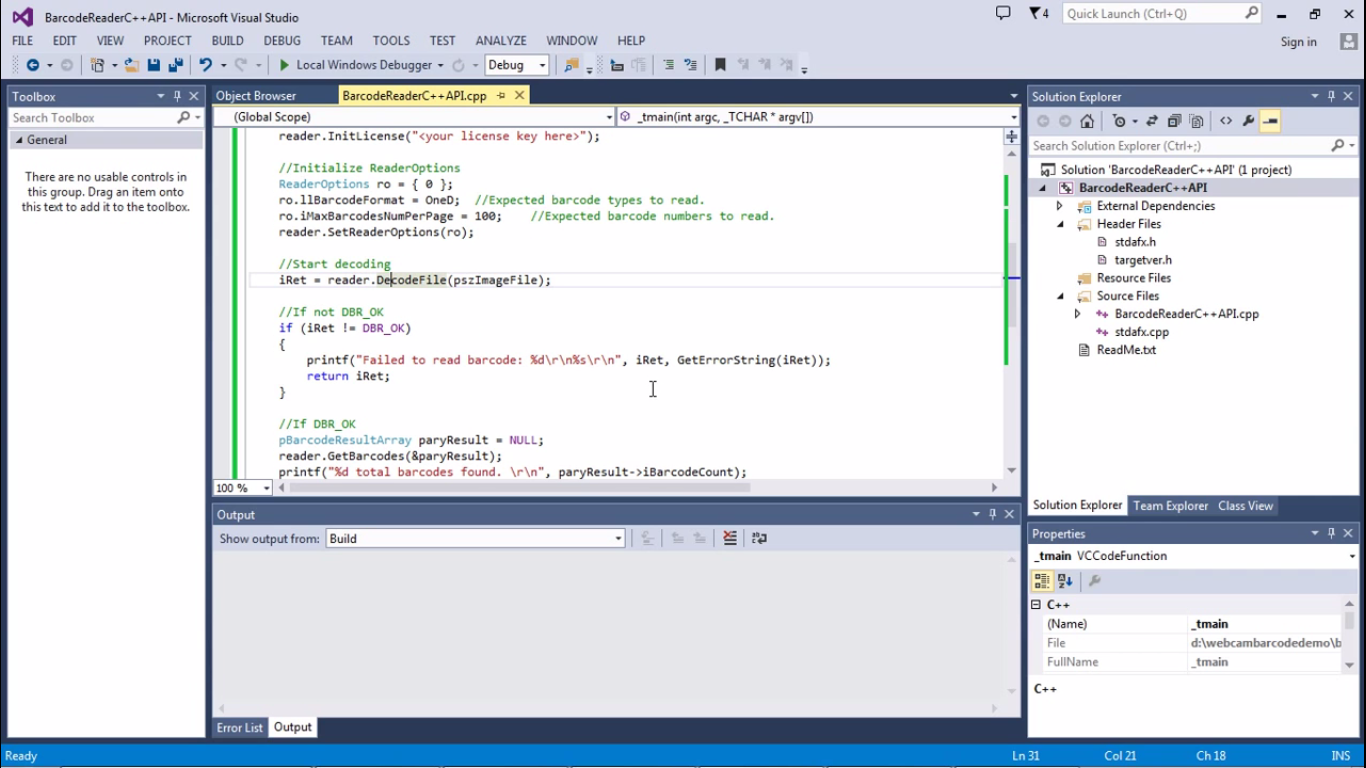

//Start decoding

iRet = reader.DecodeFile(pszImageFile);

//If not DBR_OK

if (iRet != DBR_OK)

{

printf("Failed to read barcode: %d\r\n%s\r\n",iRet, GetErrorString(iRet));

return iRet;

}

//If DBR_OK

pBarcodeResultArray paryResult = NULL;

reader.GetBarcodes(&paryResult);

printf("%d total barcodes found. \r\n", paryResult->iBarcodeCount);

for (iIndex = 0; iIndex < paryResult->iBarcodeCount; iIndex++)

{

printf("Result %d\r\n", iIndex + 1);

printf("PageNum: %d\r\n", paryResult->ppBarcodes[iIndex]->iPageNum);

printf("BarcodeFormat: %lld\r\n", paryResult->ppBarcodes[iIndex]->llFormat);

printf("Text read: %s\r\n", paryResult->ppBarcodes[iIndex]->pBarcodeData);

}

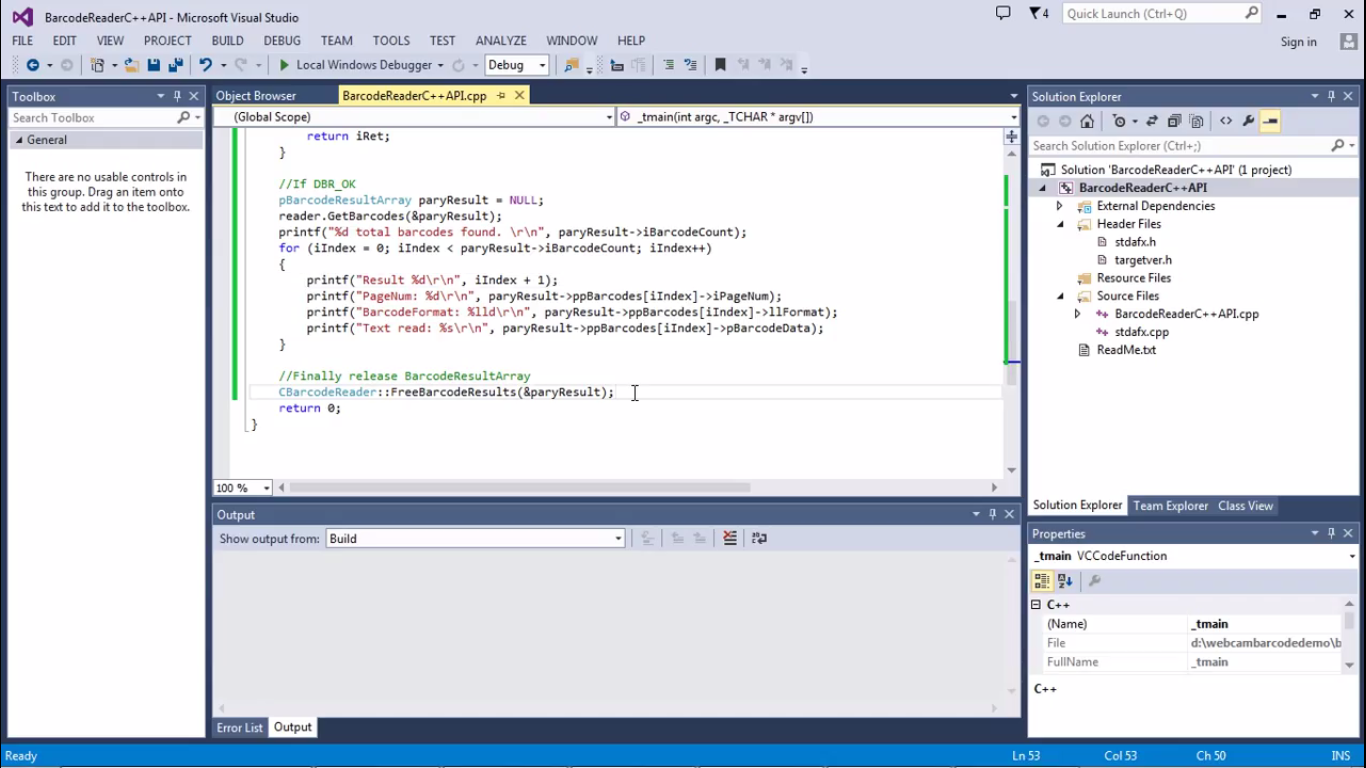

//Finally release BarcodeResultArray

CBarcodeReader::FreeBarcodeResults(&paryResult);

Update source image

Change the image path. I am going to use a sample image from the installation folder. Copy the file path, add the escape character, and then the file name. Change the path to "C:\\Program Files (x86)\\Dynamsoft\\Barcode Reader 4.1\\Images\\AllSupportedBarcodeTypes.tif".

const char * pszImageFile = "C:\\Program Files (x86)\\Dynamsoft\\Barcode

Reader 4.1\\Images\\AllSupportedBarcodeTypes.tif";

Build the project. Build Succeeded.

Copy barcode DLLs

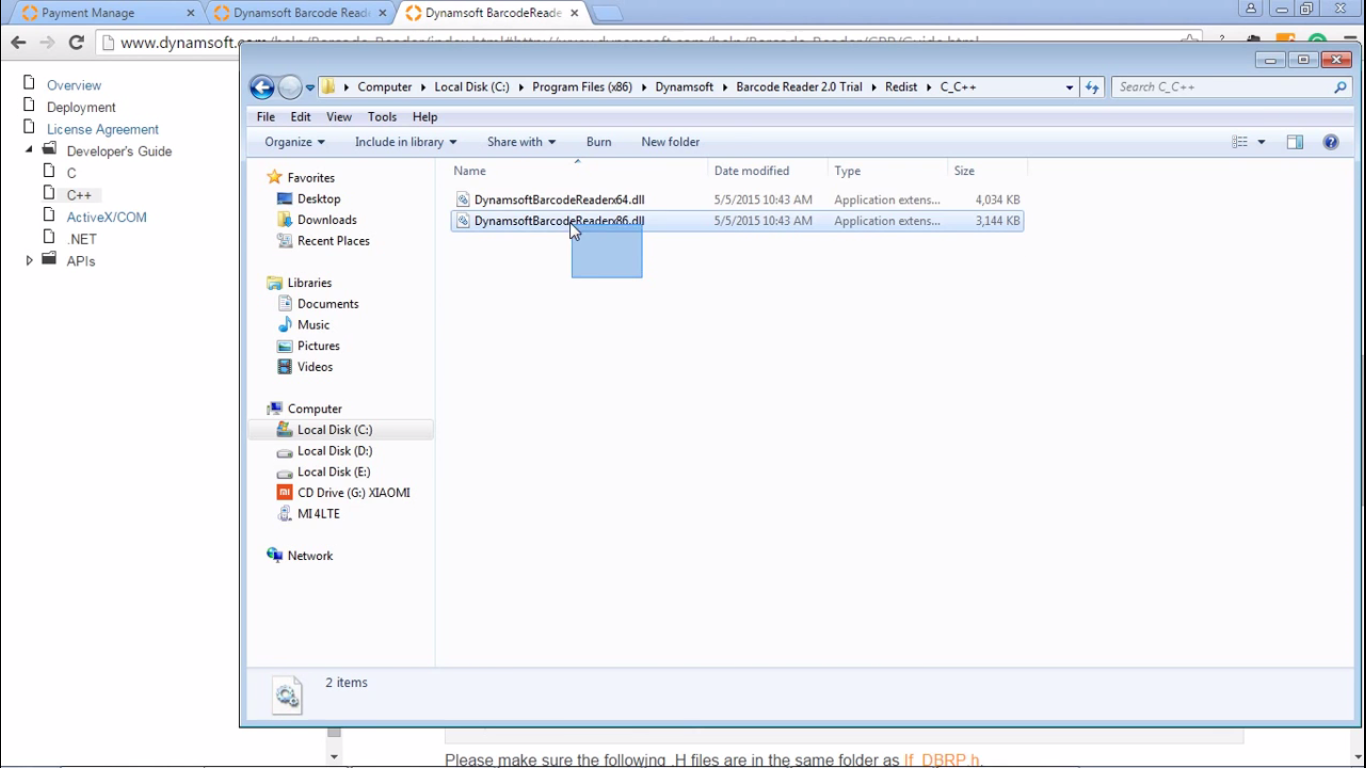

Go to the installation directory, under the Components\C_C++\Redist folder, copy the two DLLs - DynamsoftBarcodeReaderx86.dll and DynamsoftBarcodeReaderx64.dll. Paste them to the same folder as BarcodeReaderC++API.exe, which is under the Debug folder of the solution by default.

Press Ctrl+F5 to run the project. OK. We've got all the barcodes recognized.

Review the code

Now, let's go over the code quickly. First, we define variables including the image path. And then we configure the license info. With this snippet, we initialize the barcode reading options, such as barcode types, and how many barcodes to read per page. Call the DecodeFile method to decode the barcodes. If there are multiple barcodes found, we use a loop to print out the results one by one.
