CADdirect 2024 - Artificial Intelligence CAD

The Power of Expert Robotics, IntelliCAD 11.1, and OpenAI Technology

Fully AutoCAD® Compatible CAD System with .DWG as Native file Format, Includes Print2CAD 2024 AI, CADconv AI and CADGPT

CAD System in English, German, Spanish, French, Portuguese, Italian, Korean, Polish, Ukrainian

A Professional Grade 2D/3D CAD System for .dwg FilesBased On New IntelliCAD 11.1a

CADdirect 2024 AI incorporates standard features found in other CAD programs, along with features and capabilities you won’t find anywhere else. CADdirect 2024 AI fully supports AutoCAD legacy drawings and reads and writes .dwg files in their native format without any loss of data, from AutoCAD 2024 back to Version 11, including AutoCAD LT®.

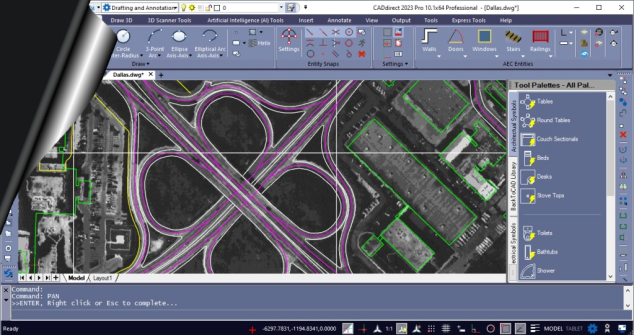

Powerful 3D AEC Architectural Modeling (Pro Version)IFC/BIM/Revit® Import/Export

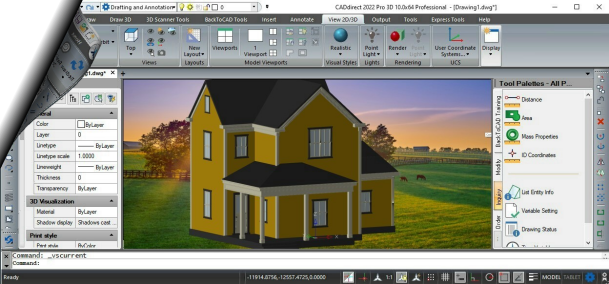

CADdirect 2024 AI fully supports three-dimensional ADT Architectural Models like Walls, Windows, Doors, Stairs etc. CADdirect 2024 AI supports creating, editing, rendering, viewing of AEC Models. Automatic creation of associative architectural cuts through the construction. AEC Section Views, AEC Elevations. Import and export of IFC, BIM, Revit® files.

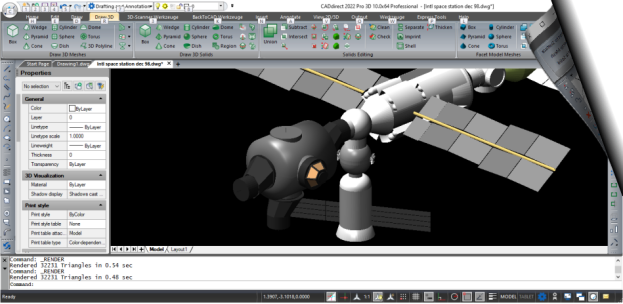

Powerful 3D Solid Modeling as ACIS (Pro BIM Version)Based On Dassault Systems®

CADdirect 2024 AI fully supports three-dimensional ACIS solids, wireframes and surfaces. CADdirect 2024 AI supports creating, editing (unification etc.), rendering, viewing of 3D solids features. You can import and export ACIS as SAT, STEP or IGES files. You can use direct modeling operations on all ACIS solids, whether you create them in CADdirect or import them from other modeling applications.

Best Full Compatible with AutoCAD® Settings

CADdirect 2024 AI provides unparalleled compatibility with AutoCAD, using most of the same file formats including those for drawings (.dwg files), commands, linetypes, hatch patterns, and text styles. You can also use AutoCAD menu files and run Autodesk LISP programs.

AI Function:

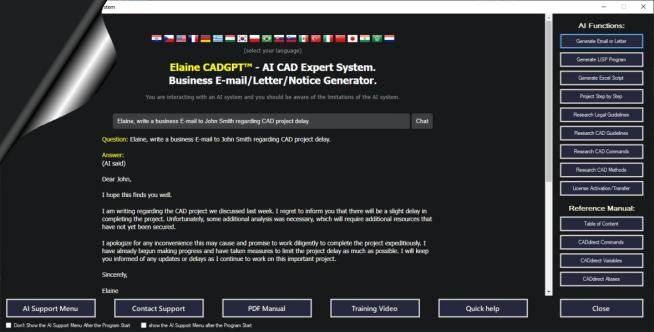

Generate business Email or Letter

Generate LISP Program

Generate Excel Script

Explain Project Step by Step

Research CAD Commands

Research Legal Guidelines

DWT Files

Full Support of AutoCAD® DWT Template Files

Commands

The Commands are fully AutoCAD® compatible

Menus

The Menus are fully AutoCAD® compatible (.CUI, .CUIX)

Script/LISP

The Script and LISP are fully AutoCAD® compatible (.SCR, .LSP)

Linetypes

The Linetypes are fully AutoCAD® compatible (.LIN)

Hatches

The Hatch Styles are fully AutoCAD® compatible (.PAT)

Plot Styles

The Hatch Plot Styles are fully AutoCAD® compatible (.STP, .STB)

SHX Fonts

Full Support of SHX Fonts, over 2000 Unicode Characters



Move Settings From AutoCAD® to CADdirect in Minutes:Import Your AutoCAD Customizations - CADdirect Is Ready For Import Of Following Files Or Settings:

• Customer User Interfaces (.cui, .cuix files)
• Customer Menus (.mnu, .mns, .ica files)
• Toll Palettes (.xtp files)
• Templates (.dwt Files)
• LISP Programs (.lsp files)
• Plotter Files (.plt files)

• Font Files (.shx Files)
• Dimension Styles
• Layout Settings
• Linetypes
• Hatch Styles
• User Coordinates

• Multiline Styles
• Views
• Text Styles
• Blocks
• External References
• Layer Definitions



Digital signature for DWG Elements

Back2CAD AI Technologies Patent: Artificial Intelligence Intellectual Property Protection for DWG Files

CADdirect 2024 AI offers the possibility to attach a patented Digital Signature to DWG Elements. The signature is a part of a geometry and persists in the DWG drawing copying and pasting and saving in another format (for example DGN or IGES). You can check for the Signature using Artificial Intelligence Methods.

Extended UNICODE SHX Fonts

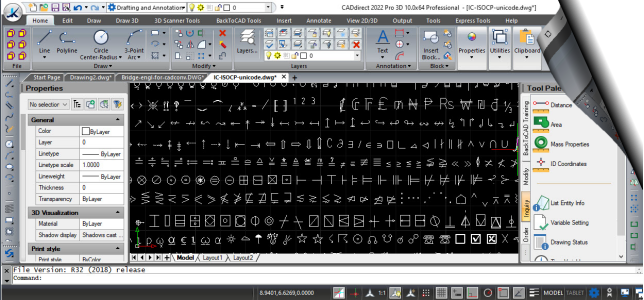

CADdirect 2024 AI offers extended Unicode Fonts with over 2000 important Unicode Symbols inside of ISOCP.SHX font. You can use like in AutoCAD the \U+NNNN string to put the Unicode into your text.

LISP and Scripts Support

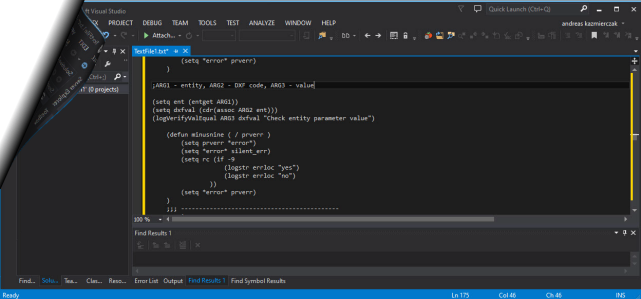

You can run LISP routines developed in AutoCAD® and other CAD applications and develop your own LISP routines. Lisp routines are the easiest way to automate processes for mass layer manipulation, change entity properties, standardize plotting etc. You can run existing Autodesk® LISP applications in CADdirect 2024 with little or no modification. CADdirect 2024 uses the Appload command so you can easily load LISP programs.

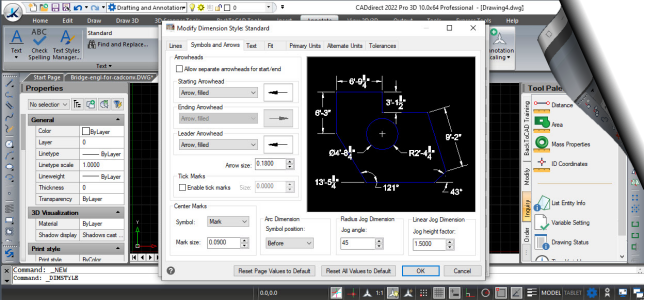

Dimensioning and Measuring

You can create five basic types of dimensions: linear, angular, radial, diametral, and ordinate. You can create dimensions for existing entities by selecting them, or you can create dimensions by selecting points within a drawing. For example, you can create a linear dimension either by selecting the entity to be dimensioned or by specifying the first and second extension line origins.

AutoCAD® Dynamic Blocks Support

You can use the Dynamic Blocks created in AutoCAD® directly inside of CADdirect. You can control the visibility, flip, stretch, and rotate just as you would in AutoCAD®.

CADdirect 2024 AI includes a dynamic block symbol library with architectural, electric symbols.

Graphic Optimization

CADdirect 2024 AI is full optimized for OpenGL and OpenGL ES Graphic Cards found in every Computers. You do not need expensive GPU extensions or CAD Graphic Cards. CADdirect works perfect with standard Graphic Cards and uses the modern standard OpenGL to present the drawing on the screen and to take the input and output from your mouse clicks. CADdirect supports multi-threaded, multi-processor operations to speed the performance for file loads, drawing generation and rendering.

Artificial Intelligence SupportSupport Android And AI Import/Export

CADdirect 2024 AI is accelerated with Artificial Intelligence Methods during PDF Import/Export, Raster To Vector and Relayering Procedure. Artificial Intelligence PDF Export prints the construction layouts fully automatic in scale and using automatic the correct paper format. Artificial Intelligence Support Android "Elaine" is waiting 24/7 for user support questions.

CADdirect Import / Export Formats

#	Format	Import	Export	Descrition
1	DWG	(native)	(native)	AutoCAD® Drawing File (Version 12, 14, 2000-2024)
2	DXF			AutoCAD® Data Exchange Format (Version 12, 14, 2000-2024)
3	DGN			MicroStation Drawing File
4	PDF	(incl. Raster2Vector)		PDF Raster Images Vectorization and OCR
5	3D PDF			PDF 3D Publishing with Layouts
6	SAT			ACIS 3D Data
7	STEP/IGES	(Pro Version)	(Pro Version)	3D Boundary Representation Data
8	STL			StereoLitography for 3D Printers
9	OBJ			3D Scanner Data
10	DWF			Autodesk Portable Data
11	COLLADA			3D Data Representation
12	SCG/WMF/EMF			Scalable Vector Data
13	JPEG/TIFF/BMP	(Raster2Vector optional)		Raster Picture Format
14	PRC			3D PDF Input as Product Representation Compact
15	IFC	(Pro Version)		Industry Foundation Class BIM Import/Export
16	BIM	(Pro Version)		Support for Revit® .RVT/.RVA files, BIM overlays
17	PCG/RCP	(Pro Version)		Point clud .pcg, .rcp, .rcs
18	CSV/TXT			Comma Formatted Coordiantes



Point Cloud and Scan Files Visualization and Import (.obj, .stl, .pcg)

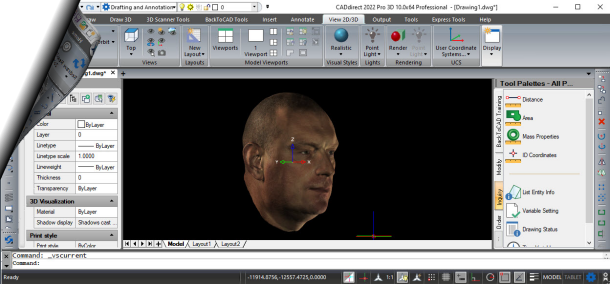

With Print2CAD 2024 AI you can import the standard 3D scan STL and OBJ files and save it as 3D DWG for CAD import. Print2CAD offers enhanced 3D scan editing tools (moving, streching, deleting of scan points). 3D Scans can be just in time realistic rendered and time viewed using orbit functions. 3D scans can be exported as DWG and DGN.

Perfect PDF Import with Print2CAD 2024 AI

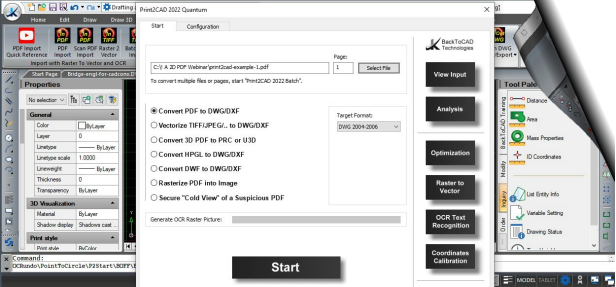

CADdirect includes Print2CAD 2024 AI Converter. CADdirect 2024 AI converts all PDF vectors, PDF raster images (vectorization), native and non-native PDF text (OCR). CADdirect 2024 AI recognizes circles, arcs, right corners, rectangles, frames, crosses, small symbols. CADdirect 2024 AI converts or recognize layers, linetypes and line weights. CADdirect 2024 AI cleanup polyline vertices and reduce the number of coordinates during the conversion. Batch conversion of hundreds of files in one run. You can increase the accuracy of the coordinates using Calibration Points.

PDF 3D/2D Export and Publishing

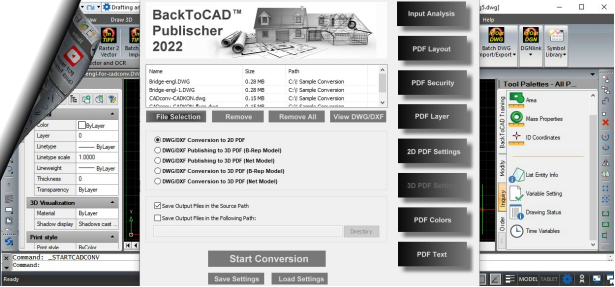

Batch DWG/DXF in PDF conversion using color / line weight table or CTB files. Publishing of DWG/DXF as interactive PDF files. 3D DWG publishing with attractive PDF templates. PDF to raster image conversion. PDF cold view of suspicious PDF files. Integrated PDF viewer with element separation and measurement. Integrated DWG/DXF post-processor for file structure check, layer and color changing.

DWG Migration with Relayering

Import old AutoCAD® or other CAD system drawings and convert them to your actual layer and color convention.

CADdiredt Migration Toll offers all kinds of remedies during CAD data exchange or migration – remedies for incorrect dimensions, corrects texts that are too long, assigns correct fonts and correct special characters, eradicate incorrect levels.
