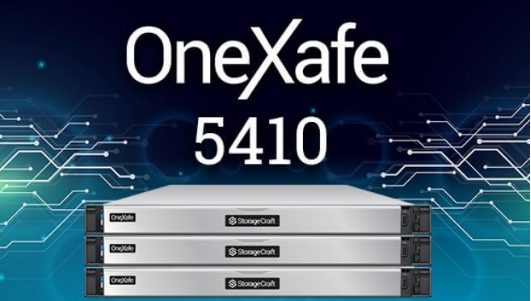

OneXafe 5410

High-Performance Storage Model

High-Performance Application Needs

Cost-effective storage for your high-performance virtual environments. No forklift upgrades, no costly expansion.

High-Performance. Cost-Effective.

StorageCraft is reimagining storage with OneXafe 5410, an all-flash, scale-out, object-based storage solution that delivers the simplicity of NFS and SMB and that’s optimized for virtual environments. OneXafe provides scale-out storage for high-performance, unstructured data and backup targets for instant restores in less than a second. OneXafe scale-out high-performance storage can be configured to serve primary virtual server storage, unstructured data, or secondary storage with high-performance needs.



Simplified. Unified.

With its unified storage architecture, OneXafe scale-out high-performance storage reduces management and operational costs for primary and secondary storage. Additionally, it solves common storage pain points: complex installation, cumbersome storage management, lack of data security, and forklift upgrades. With OneXafe’s continuous data protection and its immutable object store, your data is resilient against ransomware or user errors, ensuring that the information is always recoverable. Without the shackles of a legacy storage architecture, StorageCraft’s clean-sheet approach combines OneXafe 5410 high-performance storage with OneSystem, an elegant multi-tenant cloud-based management service.

A number of configurable options are available with OneXafe, whether it serves as storage only, or it comes with data protection options.



High-Performance Storage

Configure StorageCraft OneXafe scale-out high-performance storage to serve primary production data storage or secondary storage for applications with high-performance needs.



Integrated Data Protection

Eliminate data silos. Enable and configure enterprise-class data protection with scale-out storage, and enjoy simplified management.



Use Cases

Server Virtualization

The high-performance, scale-out OneXafe 5410 addresses the I/O blender effect in virtual server environments. Provisioning, managing, and scaling out NFS datastores is simple with no configuration required.

Virtual Desktop

Login/boot storms can bring any storage to its knees in a VDI environment. Not so with all-flash scale-out storage. OneXafe’s powerful storage reduction technologies, such as inline deduplication and compression, keep the storage footprint in check.

High-Performance Backups

OneXafe 5410 delivers the performance required to improve recovery time objectives (RTOs) significantly at a price point that is comparable to legacy disk systems.

Technical Specifications

System Input Requirements	100-240 V AC, 10.7 – 4.2A max
Power Supply	Hot-pluggable, redundant 750W power supply units
Weight (empty, no disks)	49 lb. (21.9 kg)
Space Requirements (W x H x D)	17.08 x 1.68 x 29.74 in. (434 x 42.8 x 75.55 mm); for x4 / x10
Hard Drive Type	2.5" SATA (6 Gb/s) / SAS (6 Gb/s and 12 Gb/s)
Operating Temperature and Humidity	10° C to 35° C (50° F to 95° F)
Cooling	8 variable-speed fans
File Service Protocols	SMB (1.0, 2.0, 2.1, 3.0); NFS v3
Gigabit Ethernet Ports	4 x 10GbE BASE-T or 4 x 10 GbE SFP+
USB Ports	USB 3.0 (front)
Remote Lights-Out Management	iDRAC via 1GbE port
Electromagnetic Emissions and Compatibility	FCC Class A, EN 60950-1 or EMC, CISPR 22 / CISPR 24 and  EN 55022 / 55024, EU, India, Ukraine RoHS Directive 2011/65/EU, EU REACH
Drive Bays	10 x 2.5 in. drive slots, hot swappable
Max Raw Capacity	38 TB (10 SSDs rated at 3.8 TB each)
