StorageCraft：OneXafe Capacity Storage Models

Capacity Storage for Your Unstructured Data and Backup Targets

Data storage reimagined. Seamless. Protected. Easy. Cost-effective. No forklift upgrades. No costly expansion.

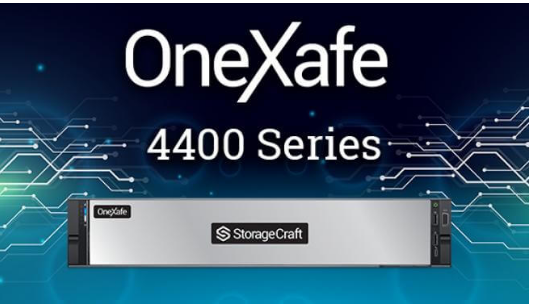

Scale Storage Capacity Easily with OneXafe NAS Solution

OneXafe’s easily managed network-attached storage solution offers scale-out architecture, enabling you to seamlessly add one drive at a time or multiple nodes in a cluster. OneXafe 4400 series delivers scale-out storage for large-scale unstructured data and backup targets. The OneXafe 4412 and 4417 models each combine the advantages of a distributed object-store with the accessibility of SMB and NFS protocols. OneXafe’s unified architecture reduces management complexity and operational costs for storage. It enables enterprise features such as global inline deduplication, compression, continuous data protection, and encryption at rest so organizations no longer have to allocate extraneous storage capacity dedicated solely for data protection.



Shake Off the Shackles

The OneXafe 4400 series network attached storage solution solves common pain points of storing unstructured data: complex installation, cumbersome storage management, limited capacity, lack of data security, and forklift upgrades. Without the shackles of a legacy storage architecture, StorageCraft’s clean-sheet approach combines OneXafe with an elegant multi-tenant cloud-based management service, the OneSystem.

A number of configurable options are available with OneXafe, whether it serves as storage only, or it comes with data protection options.



Capacity Storage

Configure to serve as secondary storage for your large-scale unstructured data storage and backup needs.



Integrated Data Protection

Eliminate data silos. Enable and configure enterprise-class data protection with scale-out storage, and enjoy simplified management.



Use Cases

File Server Consolidation

OneXafe 4400 series deliver a highly scalable, available, and easily managed network-attached storage (NAS) solution designed to simplify storage management of unstructured data. With OneXafe’s continuous data protection, your data is resilient against ransomware or user errors, ensuring that the information is always recoverable.



Data Archival

OneXafe’s ability to scale capacity granularly makes it a snap to cost-effectively manage the explosive growth of data in healthcare, video surveillance, engineering, and other data intensive environments.



Disk-Based Backup Target

OneXafe 4400 series scale-out architecture provide a highly scalable, disk-based backup target for your virtualized as well as physical server environments--thus delivering pay-as-you-grow scalability with the convenience of near zero-configuration of storage management tasks.



Technical Specifications



Specifications	4412 mid-size capacity	4417 large-size capacity
System Input Requirements	100-240 V AC, 10.7 – 4.2A max
Power Supply	Dual output power 750W; output voltages +12V (75A), +5Vsb (4A)
Weight (empty, no disks)	73 lb. (33.1 kg)
Space Requirements (W x H x D)	19 x 3.4 x 28.1 in. (482 x 86.8 x 715.5 mm); 2 Rack Units (RU)
Hard Drive Type	3.5" SATA (6 Gb/s) / SAS (6 Gb/s and 12 Gb/s)
Operating Temperature and Humidity	10° C to 35° C (50° F to 95° F)
Cooling	6 variable-speed fans
File Service Protocols	SMB (1.0, 2.0, 2.1, 3.0); NFS v3
Gigabit Ethernet Ports	4 x 10GbE BASE-T or 4 x 10 GbE SFP+
USB Ports	2 x USB 3.0 (front)
Remote Lights-Out Management	iDRAC via 1GbE port
Electromagnetic Emissions and Compatibility	FCC Class A, EN 55022 Class A, EN 61000-3-2/-3- 3, CISPR 22 Class A
Drive Bays	Up to 12 x 3.5 in. hot-swappable drives	Up to 17 x 3.5 in. hot-swappable drives
Max Raw Capacity	144 TB (12 disks rated at 12 TB each)	204 TB (17 disks rated at 12 TB each)
