Undet for Revit

Undet for Revit

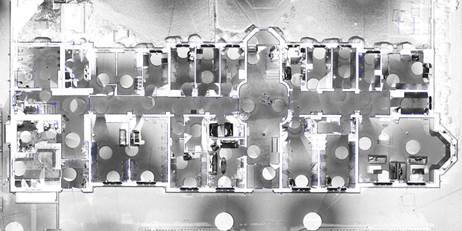

UNDET enables Revit point cloud users to experience better visibility, increased control and performance. UNDET dynamic views are generated directly from the UNDET database instead of loading heavy RCP files, therefore ensuring super-smooth workflow.



Increased performance & Better visibility

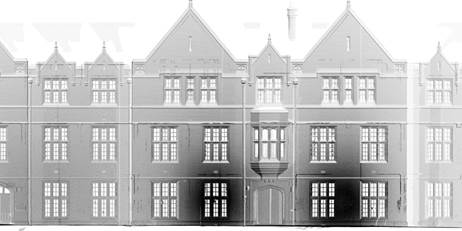

UNDET dynamic views are lighter than point clouds and have an even better view. Dynamic views are quick to generate and do not drastically reduce the speed of Revit.

UNDET dynamic views can be smoothly updated directly in Revit: update resolution, change coloring settings and combine multiple dynamic views.



Increased control

The dynamic views generation region can be smoothly selected according to two choices and generated outside of the Revit view range giving flexibility in controlling the level of information you see in your view:

• “Screen Area” by window extent
• “Defined Area” by rectangle

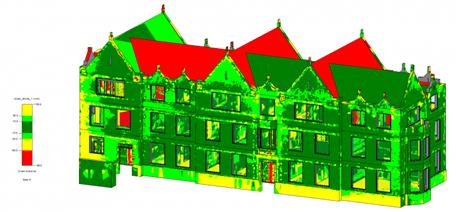

NEW! Surface analysis tools

UNDET surface analysis tools will let you check and visualize a created model’s accuracy based on the point clouds. No matter if you do outsource modeling, or do it in house, without appropriate QC procedures you don’t have a smooth workflow:

• Prepare and share a report that 3D modeling has been performed with the required accuracy
• Ensure outsourced 3D model accuracy

Convert Dynamic point cloud views into raster documentation

Send raster images by email to your clients without any additional licensing fees.

Raster images take a dozen times less space compared to point clouds. This enables super-smooth communication with stakeholders.
