Create SNMP Data Structures with Ease and Clarity

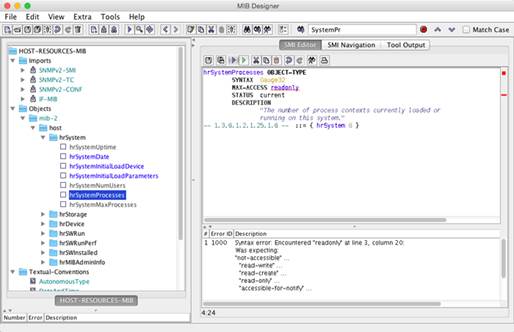

Use MIB Designer to create, edit, manage, and explore SMI specifications. It ensures 100% correctness of the specification and thus best interoperability for your product.
Refactoring of MIB specifications is easy and safe.



Key features of MIB Designer are:

• Multi-platform application and license for Java SE.
• State-of-the-art SMI syntax and semantic checks.
• SMI syntax auto-completion.
• Virtually unlimited undo/redo.
• Copy&Paste nodes and sub-trees between multiple MIB modules.
• Tool plug-in interface to integrate 3rd party applications.
• On-the-fly spell checker (English).
• Various output formats: PDF, XML, XSD, Text, HTML.
• Refactoring support with automatic update of object references.
• SMI revision control can block changes on released revisions that would change behavior on the wire.
• New MIB Wizard simplifies the creation of the basic structures for new MIB modules.
• SMIv1 <-> SMIv2 conversion.

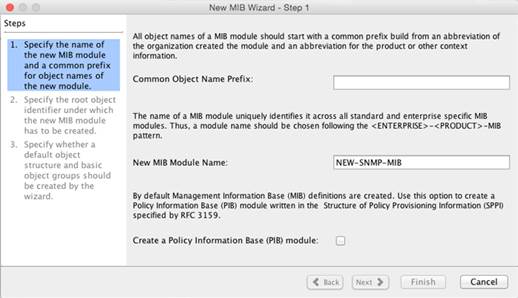

The MIB creation wizard helps you quickly create a basic MIB module with a scalable structure.

Define your own common object name prefix to let MIB Designer create new object names using the defined prefix.

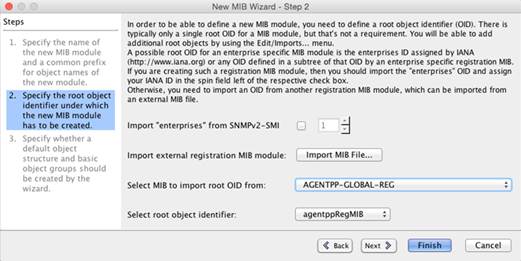

In order to be able to define a new MIB module, you need to define a root object identifier (IOD). There is typically only a single root OID for a MIB module, but that’s not a requirement.

Specify the root object identifier under which the new MIB module has to be created.

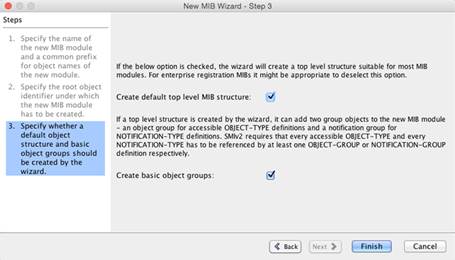

The third step creates a best practise MIB structure and basic groups by default.

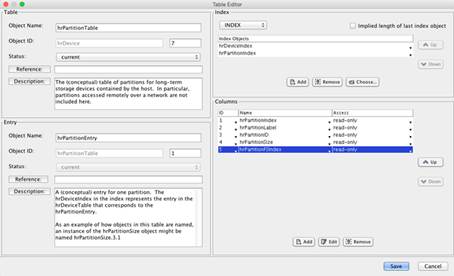

The table editor ensures consistent and easy SNMP table editing. MIB objects can be selected from imports and the current MIB module according to SNMP rules.

MIB object editors exists for any SMI (PIB) object types, including the AGENT-CAPABILITIES statement.

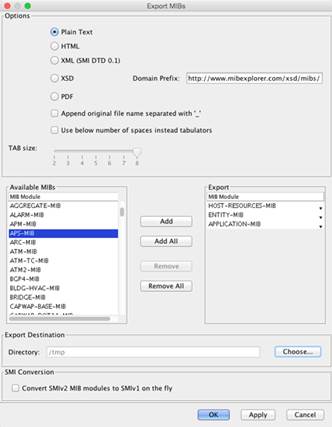

With the MIB Export dialog you can export compiled and created MIBs to various formats including XML.
