Serial Port Redirector

Serial Port Redirector
Redirect COM port data over Network

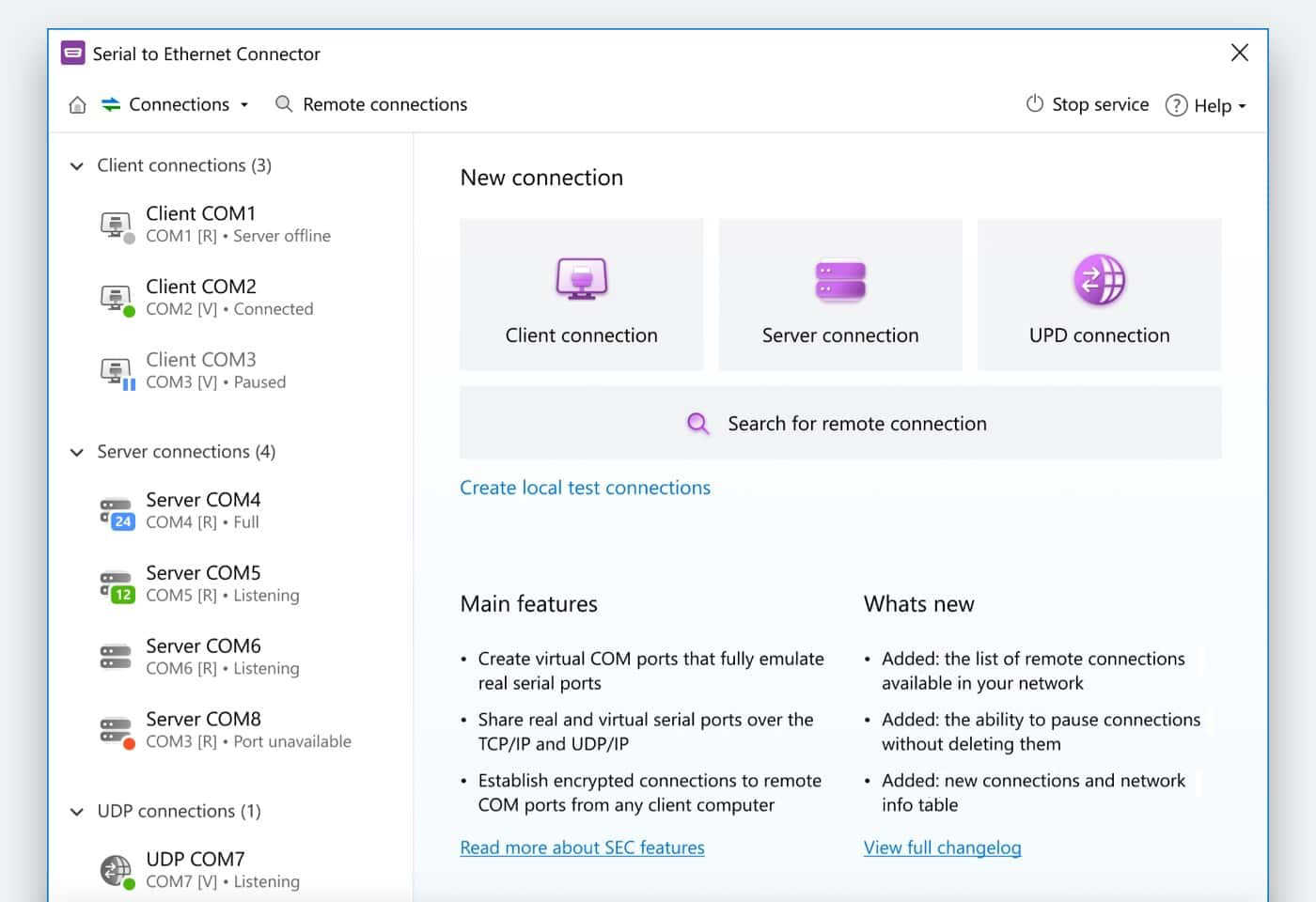

Serial Port Redirector (Serial to Ethernet Connector) is a software tool that enables you to redirect up to 500 serial port devices over network (Internet or LAN). A single COM port can be accessed by multiple computers in the network, no matter where the port is actually located. With Serial Port Redirector by Eltima there is no problem of working with remote serial devices - be it a modem or any other kind of equipment that uses serial ports for communicating with a PC. Remote and virtual serial ports and devices will be treated by your apps as if they were plugged directly into your machine.



Also available on Linux OS and Windows Mobile



With Serial Port Redirector you can

Redirect serial ports over TCP/IP network (Server)

Server listens for incoming connections from clients and redirects local COM ports – either real or virtual – over Ethernet. Any application that can initialize outgoing connection to TCP/IP server can be a client. A single COM port can be redirected to multiple clients at the same time, and each of them can transmit data to their local serial port, while Serial Port Redirector will gather all the data on the server.



Connect to serial ports remotely (Client)

Once a client connection is created, data transmitted by a local serial port is redirected to the remote server over TCP/IP protocol. You need to specify the IP address (or the network name) of a remote server and TCP port to connect to, it is not required to install Serial Port Redirector on the remote server. Once your machine and a remote server are connected, your local serial port will receive all the data sent from the remote end.



Utilize UDP for data transfer

Serial port data can be redirected over UDP/IP transport protocol and broadcast over a local network. Serial port redirector installation is not required at the remote end. You can choose either RAW data transmission algorithm or Telnet (RFC 2217) as a protocol for transmitting the data.



Serial Port Redirector for Linux OS

COM Port Redirector (Serial to Ethernet Connector) is a cross-platform solution, it now has a command-line version for Linux OS. You can designate a Linux machine as a server and Windows machine as a client, or the other way around. Serial Port Redirector for Linux supports data transmission over UDP.



 Download COM Port Redirector for Linux OS now!

Linux version for ARM-based devices is available. Now you can share serial ports on ARM devices or connect to remote devices. Note: you need D-Bus to be installed on your device to use this version.



COM Port Redirector full features list

√	No limitation on the quantity of virtual serial ports or connections created (except your system resources)
√	Manage port signal lines states in connections
√	Verify connection's integrity by using "send command to keep connection alive" feature
√	Set pauses after which all received data is sent to remote end when using UDP as underlayer protocol
√	Share your serial ports and devices with others over TCP/IP network
√	Both TCP/IP and UDP/IP protocols are supported
√	Easily connect to remote computer using TCP/IP Telnet protocol, with the RFC 2217 Telnet extensions for COM Port Control
√	Share an unlimited number of serial ports simultaneously for remote connections
√	Serial port names are not restricted to COMxx only and may have virtually any name
√	High speed data exchange from/to virtual serial port (up to 256 Kbits)
√	Virtual serial ports work like real physical ports
√	Automatically restore connection within a customizable timeout on connection breaks
√	Small packet transmission speed can be increased by disabling Nagle algorithm
√	Dynamically change COM port parameters without necessity to reopen or re-create it
√	Ports are automatically configured every time you boot your PC
√	Map your real serial port to any other virtual or real port
√	Customize advanced connection settings when you switch to Advanced mode
√	Easily track all program's activity in "Activity log"
√	Secure your data transmission over network by authorization system and traffic encryption
√	Connection speed in serial port pairs is much more reliable and faster than in physical links
√	Ability to create your own libraries for authorization and encryption (OEM only)
√	User-friendly and convenient program interface
√	Fully compatible with Windows 2000, Windows (32-bit and 64-bit): XP/2003/2008/ Vista/7/8/10, Windows Server 2012
√	Fully compatible with HyperThreaded and multi-processor systems
√	Works in virtual machine
√	Single license allows you to install this application on two computers to provide client-server architecture
√	Connect to several remote computers simultaneously
√	Ability to send data on certain event in UDP connection type (when block reaches certain size, on receiving special char and on certain timeouts)
√	Renaming full port names in Device Manager
√	Strict baudrate emulation option for virtual ports
