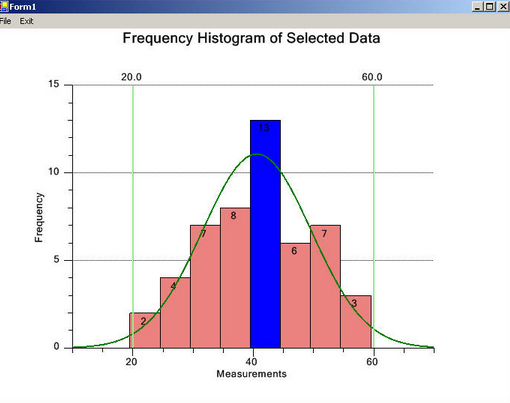

Add variable control charts (X-Bar R, X-Bar Sigma, Individual Range, Median Range, EWMA, MA, MAMR, MAMS and CuSum charts), attribute control charts (p-, np-, c-,  u-, and DPMO charts),  frequency histograms, and Pareto charts to Silverlight web applications using the SPC Control Chart Tools for Silverlight.

Feature Summary

Silverlight 4.0 and 5.0 -The software is based on the Silverlight 4.0 API and is forward compatible with Silverlight  5.0..

Visual Studio  2010, 2012, 2013, 2015 -The software is compatible with Visual Studio 2010 and higher.  All example program projects are in Visual Studio 2010 format.

SharpDevelop - The software is also compatible with SharpDevelop 3.X and higher.  SharpDevelop is a free IDE for C# and VB developers writing for the Silverlight/WPF/.Net platform.

Based on the Silverlight Retained Graphics Drawing Framework - Compatible with Silverlight components and applications.

100% Managed .Net Code - The software is entirely written in C#, resulting in provide better performance and scalability. Managed .Net code makes applications easier to deploy and maintain.

New Features in Revision 2.2 - support for Nelson, Juran, Hughes, Gitlow, AAIG, Westgard and Duncan rule sets in addition to the WECO rules. Exisiting rules can be customized, or new rules created using templates. Added MAMR (Moving Average / Moving Range) and MAMS (Moving Average / Moving Sigma), DPMO (Defects per million) charts. As an aid to internationalizations, all of the default (US English language) strings have been moved into a single static class, where they can be initialized at runtime with country specific values.

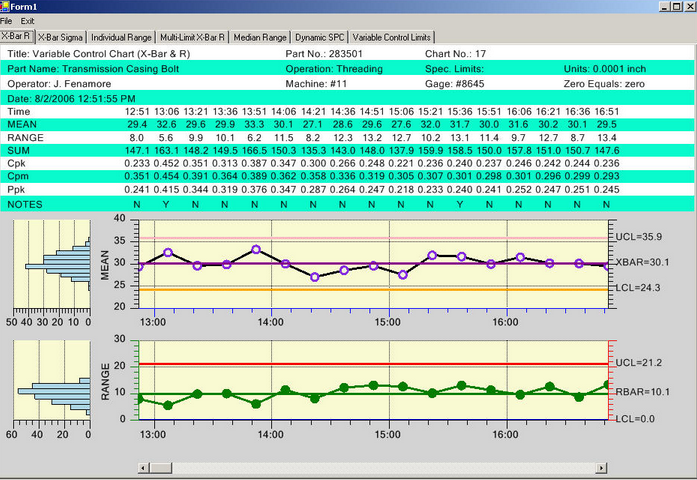

Variable Control Chart Templates -Variable Control Chart Templates - X-Bar R - (Mean and Range), X-Bar Sigma, (Mean and Sigma), Median and Range, X-R (Individual Range Chart), EWMA (exponentially weighted moving average),  MA (moving average), MAMR (moving average / moving range), MAMS (moving average / moving sigma)  and CuSum. A special version of the X-Bar Sigma chart supports variable sample sub-group sizes.

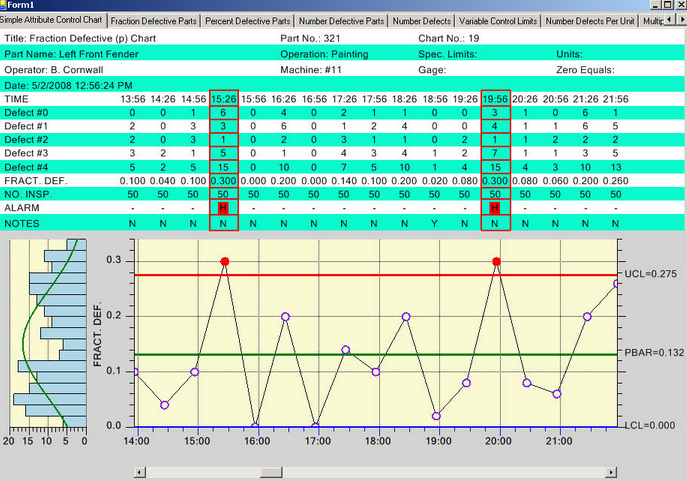

Attribute Control Chart Templates - p-Chart (Fraction or Percent of Defective Parts, Fraction or Percent Non-Conforming), np-Chart (Number of Defective Parts, Number of Non-Conforming), c-Chart (Number of Defects, Number of Non-Conformities ), u-Chart (Number of Defects per Unit, Number of Non-Conformities Per Unit ), and DPMO-Chart (Number of Defects per Million). The p-Chart and u-Chart templates come in versions which support variable subgroup sample sizes.



Process Capability Ratios and Process Performance Indices – Automatic calculation and display of process capability ratios (Cp, Cpl, Cpu, Cpk and Cpm) and process performance indices (Pp, Ppl, Ppu and Ppk)

Variable SPC Control Limits – Control limits can either be fixed, and can vary with time. Variable control limits can be specified manually, or calculated automatically as the result of control charts which use a subgroup variable sample size.
