QCSPCChart SPC Control Chart Tools for Windows Apps

SPC Control Chart Tools for Windows Apps

Add variable control charts (X-Bar R, X-Bar Sigma, Individual Range, Median Range, EWMA, MA, MAMR, MAMS and CuSum charts), attribute control charts (p-, np-, c-,  u-, and DPMO charts),  frequency histograms, and Pareto charts to Universal Windows Platform (UWP) Apps using the SPC Control Chart Tools for Windows Apps.

Feature Summary

Visual Studio 2015 - The software is compatible with  Visual Studio 2015, and higher.  All example program projects are in Visual Studio 2015 format. Since Visual Studio 2015 from Microsoft is free, anyone can upgrade to it..

64-bit Compatible - The software will run as 32-bit on Windows 32-bit operating systems and as 64-bit on Windows 64-bit operating systems. This is a feature of programs and libraries written using .Net (Version 2.0 or greater) in general.

Based on the Universal Windows Platform (UWP) Retained Graphics Drawing Framework - Compatible with Windows App components and applications.

100% Managed .Net Code - The software is entirely written in C#, resulting in provide better performance and scalability. Managed .Net code makes applications easier to deploy and maintain.

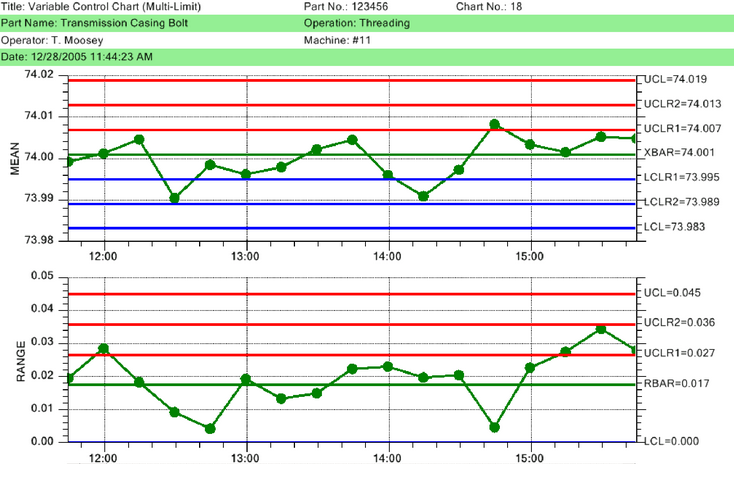

Variable Control Chart Templates -Variable Control Chart Templates - X-Bar R - (Mean and Range), X-Bar Sigma, (Mean and Sigma), Median and Range, X-R (Individual Range Chart), EWMA (exponentially weighted moving average),  MA (moving average), MAMR (moving average / moving range), MAMS (moving average / moving sigma)  and CuSum. A special version of the X-Bar Sigma chart supports variable sample sub-group sizes.

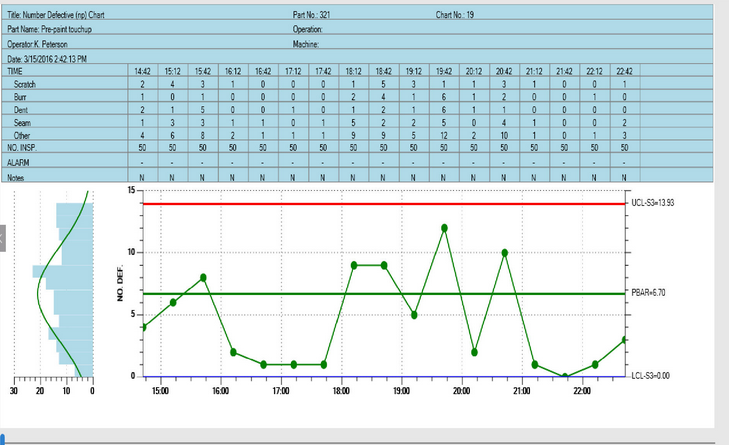

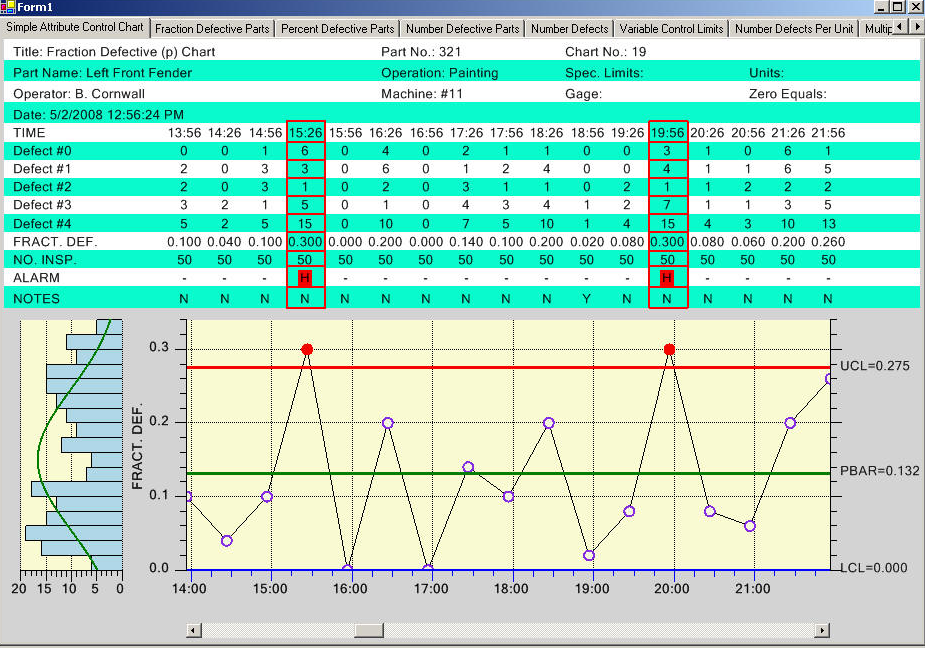

Attribute Control Chart Templates - p-Chart (Fraction or Percent of Defective Parts, Fraction or Percent Non-Conforming), np-Chart (Number of Defective Parts, Number of Non-Conforming), c-Chart (Number of Defects, Number of Non-Conformities ), u-Chart (Number of Defects per Unit, Number of Non-Conformities Per Unit ), and DPMO-Chart (Number of Defects per Million). The p-Chart and u-Chart templates come in versions which support variable subgroup sample sizes.



Customize Chart Objects - All of the plot objects created in the SPC chart templates are accessible to the programmer, allowing tremendous flexibility in the look of the SPC charts.

SPC Control Limit Calculations - SPC Control limits can be set explicitly, as the result of your own calculations, or the limits can be automatically calculated at 1-, 2- and 3- sigma levels using our own internal routines
