Accelerate for SpaceClaim

Accelerate for SpaceClaim



A tool that drastically speeds up your engineering process.

Accelerate for SpaceClaim is developed on the basis of customer needs and is periodically supplemented according to feedback from the users. All tasks that are time-consuming and error-prone without this module are automated. This allows you to fully focus on the design of the product and not on all peripheral issues. These peripheral issues and many clicks are captured in Accelerate for SpaceClaim.

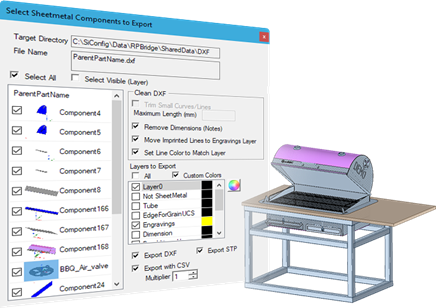

Sheet metal automation

A must-have for sheet metal users. Accelerate for SpaceClaim contains some very interesting features in the field of sheet metal:

• Automatic removal of all sheet metal parts
• Unfold check
• Automatic export from an export dialogue
• Automatic naming of your export files
• Indicate the foil side and grinding direction
• Determine the colors of the DXF (cutting file)
• Determine which layers should be exported
• Automatically create a folder in which your files will be stored
• Sort by plate thickness, material or name



Library

For quickly adding and replacing standard parts. Fill your own library based on the Windows Explorer structure.



Production drawings automation

For the time being in SpaceClaim it is only possible to open, export and name every production drawing one by one. This is very prone to errors, as you can easily overlook a drawing. The tools for the production drawings solve this problem:

• With 1 button you can see all working drawings in your project.
• Select which drawing you want to export or print
• You will see a preview of the work drawing
• Define the automatic name
• Choice of any size



Export other formats

Quickly and easily select the components to be exported to another format. This tool does this in batches.



Export a complete layer

 Assign components to a standard or custom layer. This can be part of a large composition or all your tubes in the composition. This tool immediately exports a complete layer to the desired format including a parts list. Useful for ordering lists or controlling your CAM system.



3D model to CAM software (Libellula)

Allow the tool to automatically extract and export all sheet metal parts to Libellula. All details are included in the DXF, including engravings that are already indicated in 3D. Within minutes from a complete composition to a nest and cutting plan.
