Guthrie Arcv2CAD 8

Guthrie Arcv2CAD 8



AutoCAD 2019 and EPSG coordinate system support!



Arcv2CAD converts all ESRI ArcGIS® 2D/3D Shapefile (Multipatch, Polygon, Point, Polyline etc.) to AutoCAD® DXF, DWG or KML quickly and easily. Completely stand-alone (does not require ArcGIS® or AutoCAD). Batch conversion and layer control are available.

 • No registration required to download and convert.

 • Convert Text Labels, Legends, Table data, Elevation data, colors and layers from Shapefile to AutoCAD® DXF, DWG or KML. (Support Shapefile to KML conversion.)

 • Convert multipatch and 2D/3D polygon to 3D objects in AutoCAD.

 • Select Shapefile feature attributes to convert to DWG, DXF or KML.



How to convert SHP to DWG (or SHP to DXF):

Step 1: Select a Shapefile.

Step 2: If necessary, also select Features Attributes, Text Labels or Elevation. Press Specify button.

Step 3: Select Feature Attribute Fields that you want to convert. Then press "-->" button and OK button.

Step 4: Press Save button. Then Arcv2CAD converts the shapefile to a DWG file.



Software Overview:

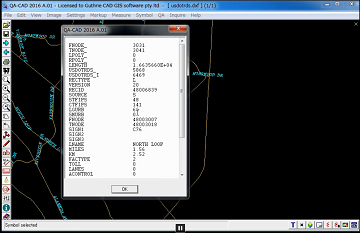

CLICK TO ENLARGE ARCV2CAD SOFTWARE SCREENSHOT IMAGES

Extrude 2D polygon shapefile to AutoCAD 3D objects

Convert elevation [contour] data as real 3D Z coordinates


Apply Colors corresponding to selected Feature Attributes and convert to AutoCAD text annotations.


Transfer table data via DXF/DWG ATTRIB or Extended Data (XData) definitions.





YOU CAN EASILY KEEP ATTRIBUTES WHEN CONVERTING ESRI ARCGIS SHAPEFILE TO DXF/DWG.

You just need to tick "Features Attributes", press Specify button and select attributes you want to convert to DXF/DWG.


OS: Win 2003/2008/2012/Citrix/XP/Vista/Win7/win7x64/Win8/Win8x64/Win10



Your Feature Complete Solution!



CONVERSIONS:

 • Translate to AutoCAD DXF and DWG versions up to AutoCAD 2018-2019.
 • Optionally output to CSV.
 • Command line mode for batch operation.


HANDLING FEATURE ATTRIBUTES:

 • Apply Colors corresponding to selected Feature Attributes.
 • Output AutoCAD entities onto Layers corresponding to Feature Attributes.
 • Produce Text Labels from Features data. Powerful built in Auto-Label function.
 • Transfer table data via DXF/DWG ATTRIB or Extended Data (XData) definitions.


LAYER AND PROPERTIES CONTROL:

 • Properties control for attributes (ATTRIBs), i.e. size, position, color, etc.
 • Layer control - The Layers Control dialog allows you to determine LAYER names, and the entities that will be placed on such Layers.


3D SHAPEFILE TYPE:

 • Support for all 3D shapefile types (PointZ, PolylineZ, PolyGonZ, MultiPatch, etc).
 • Fully handles the latest 3D shapefiles.


HANDLING POLYGON SHAPEFILE:

 • Extrude 2D Polygon shapes to 3D Objects in DWG/DXF.

 • Color fill Polygons - correctly handles holes.


DATA SOURCE:

 • Compatible with all ESRI ArcGIS® / ArcMap®/ ArcView® / ... products (all versions.).
 • Support direct access to shapefiles in ESRI Personal Geodatabase (.mdb) files.operation.
 • Data source may be CSV or DBF (i.e. no shapefile, simply a points database).


HANDLING ELEVATION DATA (Z VALUES):

 • Output Elevation data as real 3D Z coordinates.
 • Create elevation labels from point Z shapefile's Z values.
