DWG/DXF to G-Code
G-code generation from DWG/DXF files for CNC machines is implemented in ABViewer. The following entities can be converted: lines, polylines, circles, arcs, ellipses, splines, texts, multiline texts and hatches.
To evaluate this feature please do the following:
- Download and install a trial version of ABViewer.
32-bit ABViewer 64-bit ABViewer
- Open your DWG or DXF file. If you need to edit it, use the tools on the Editor tab.
- On the Output tab select the CAD to G-code command.

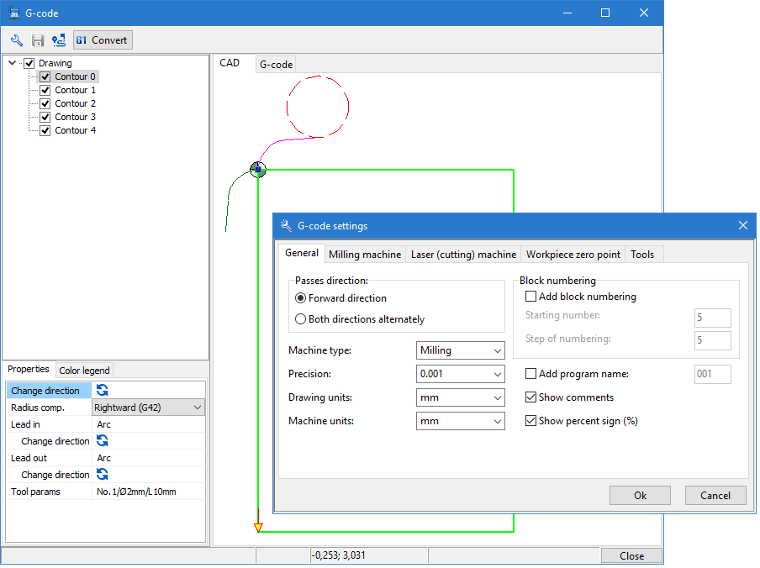

- In the opened G-code window configure all necessary settings.
- Click the Convert button. Please note that by default ABViewer generates G-code for a milling machine. You can change a machine type in the G-code settings window on the General tab.
- To save the generated G-code click the Save as button. The file will be saved with the NC extension.
The full-featured DWG/DXF to G-code converter is available in Professional and Enterprise editions.
