GerbView
GerbView™ is an advanced but easy to use application that enables you to view, print and convert Gerber, ODB++, Adobe PDF, Excellon and HPGL/2 files.
GerbView supports RS-274D and RS-274X Gerber formats, and you can use it to convert your older Gerber files to the new RS-274X extended format. The new extended Gerber format contains embedded aperture information, and using this format will minimize the risk for errors during the manufacturing of the PCB.
With GerbView's PDF to CAD capability you can convert your Adobe PDF files to Gerber or Autodesk DXF.
Gerbview will visualize your design, on the screen or in hardcopy. No more waiting for photoplots or your prototype circuit board, to see your true design.
You can use the measure and query tools to check apertures, tools, pens, distances and areas.
In GerbView you work with a workspace that can contain one or more files of the supported file formats. The workspace can be saved for later use. The saved workspace will link to your design files, so only need to reload the workspace file to see the whole design.
Markup elements like text, barcodes, arrows, lines, images, ellipses and polygons can be added to the workspace. Markups will be stored in a separate file.
GerbView can convert your Gerber, HPGL/2 and Excellon files to Autodesk DXF, Autoesk DWF, Adobe PDF and other formats. You can combine several different Gerber files (layers) and create a multi-layered PDF, DXF or DWF file. See list of supported formats below.
GerbView can rasterize single files, or whole workspaces, and save to one of the supported raster formats. Markup elements can optionally be included in the conversion.
You may print scaled or in real size. All Windows based plotters and printers are supported. Poster mode, also known as tiled pages, can be used to print large designs and drawings on for example several smaller A4/Letter pages.
Key Features
• View, print, markup and convert Gerber, Adobe PDF, Excellon, ODB++ and HPGL/2 (PLT).
• Convert your Gerber, Excellon, ODB++ and HPGL/2 files to AutoDesk DXF, Adobe PDF and other formats.
• Convert from RS-274D to RS-274X, known as extended Gerber format.
• Convert your PDF files to Gerber RS-274X, HPGL/2 or DXF.
• Convert multiple Gerber files to a multi-layer PDF, DWF or DXF file. Read more about creating layered PDF files here.
• Convert ODB++ to a layered PDF, or to individual files using Gerber (RS274-X), PDF, DXF, SVG or other formats.
• Gerber X2 file and pads attributes are supported.
• Add markup using lines, text, rectangles, images, QR-codes, barcodes, symbols, polygons and more.
• Markup burn-in feature for converting markup elements to Gerber data.
• Delete a selection of items from a loaded Gerber file.
• Report aperture usage for one or all layers.
• Command line conversion and printing is included.
• Query entity information in Gerber, ODB++, HPGL/2 and Excellon files.
• Measure distances, areas and perimeters, with our without snapping to pads and tracks.
• Both metric and imperial units are supported.
• Highlight selected apertures in Gerber and ODB++ files.
• Add files of different formats to a single workspace.
• No limit for number of files within a workspace (only limited by memory).
• Visibility, rotation, scaling, mirroring and position of all loaded files can be set individually.
• Copy selected display region to clipboard, and paste into another Windows application.
• Use mouse-wheel for zooming and panning operations.
• User defined header and footer for printing.
• Color or Black & White Printing.
• Scaled print or fit to paper.
• Full print preview.
• Poster mode for printing big format drawings on e.g. multiple A4 pages.
• Print to all Windows supported plotter and printer devices.
• Convert the whole workspace or single files to raster format. Supported formats include:
TIFF, CALS, Adobe PDF, Windows BMP, PNG and JPEG.
________________________________________
GerbView can load the following formats:
• Gerber RS-274D (Standard Gerber)
• Gerber RS-274X (Extended Gerber)
• Gerber X2
• Adobe PDF 1 2
• ODB++ (zip and tgz)
• Excellon Drill Format
• AutoDesk DXF
• HPGL, HPGL/2 and HP RTL
• TIFF
• JPEG
• PNG
• CALS
• BMP
Notes:
1.PDF files that only contains raster, e.g.: scanned drawings, are not supported by GerbView.
2.For multipage PDF files each page may be imported as a separate layer.
3.Each file will be loaded as a layer - you can view, print and convert layers individually or combined.
________________________________________
GerbView can convert to the following formats:
• Gerber RS-274X
• Autodesk DWF 1
• Autodesk DXF 1
• Adobe PDF 1
• Adobe PDF/A 1
• Adobe Postscript
• CALS Type 1
• CGM Binary
• JPEG
• PLT (HPGL/2)
• PNG
• Scalable Vector Graphics (SVG)
• Tagged Image File Format (TIFF)
• WebP Image Format
• Windows BMP
• Windows Metafile
• Windows Enhanced Metafile
Notes:
1. You may load multiple files and convert to a single multi-layer file using this format.
________________________________________
Supported Operating Systems:
• Windows XP SP 3, 32 and 64 bit
• Windows Vista, 32 and 64 bit
• Windows 7, 32 and 64 bit
• Windows 8, 32 and 64 bit
• Windows 8.1, 32 and 64 bit
• Windows 10, 32 and 64 bit
• Windows Server 2008
• Windows Server 2012
• Supports Terminal Server and Citrix.
GerbView Screenshots

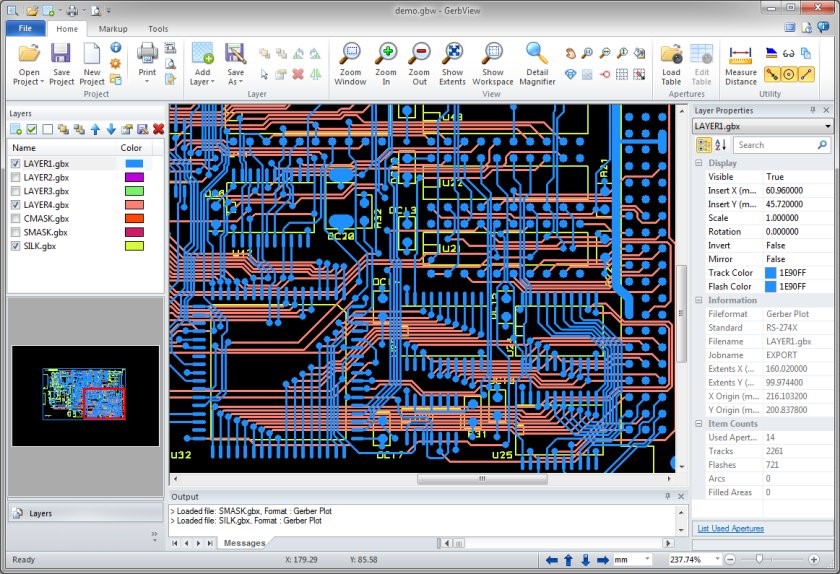

GerbView.
GerbView with demo project loaded (included in installation)
GerbView 7.
Screenshot showing GerbView with an active magnifier window.
The magnifier window will display a zoomed in view of the current mouse position
GerbView.
Screenshot showing a project in transparency mode.
Transparency will make sure all layers are visible.
