Introducing OmniSurf3D

With OmniSurf3D you will see – and understand – your data like never before!

Let’s face it. Surface texture matters. It matters a lot. But until now the ability to understand and describe surface texture was left to the “experts”. Big scary equations and complicated mathematics prevented normal people from exploring, understanding and improving their surfaces.

OmniSurf3D is a dynamic way to view and interact with your data!

When it comes to understanding surfaces, the most important tool is the ability to see your surface. OmniSurf3D provides, fast, beautiful and highly interactive graphics for easy visualization of your data. See your surfaces like never before!



The OmniSurf3D Toolset – Measurement visualization horsepower in 4 easy-to-use tools!

To describe and understand a surface you only need to deal with four things. OmniSurf3D’s streamlined interface conveniently places these four basic settings in one place. Each tool independently provides deeper insight into your data. Here are the actual settings, and how they work.

We hate to admit it, but 3D datasets often have bad points, missing pixels, outliers, etc. OmniSurf3D’s Pre-Processing takes care of them!

To understand texture, you need to remove the nominal shape. OmniSurf3D provides the reference Geometry options you need!

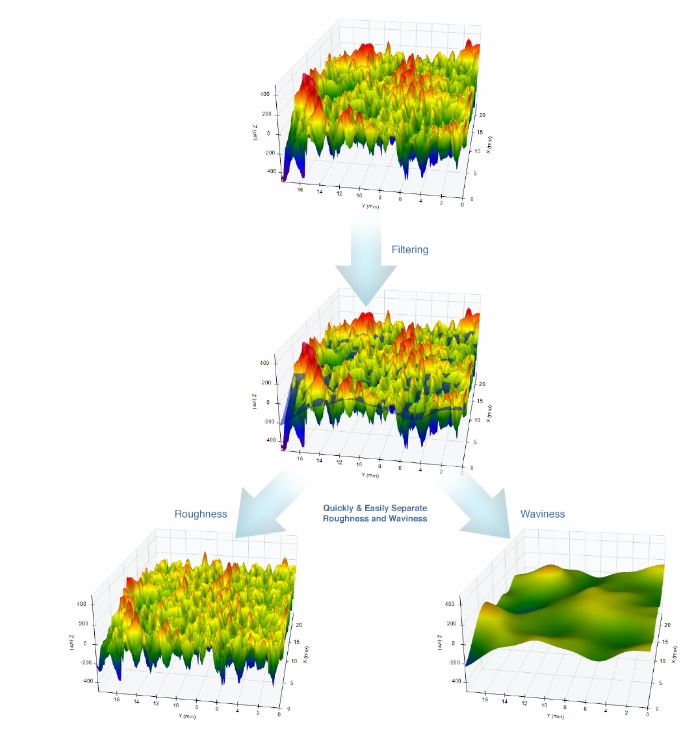

Surface texture analysis is all about roughness and waviness. OmniSurf3D’s powerful Filtering toolbox and beautiful visualizations make separating and understanding these two variables a breeze!

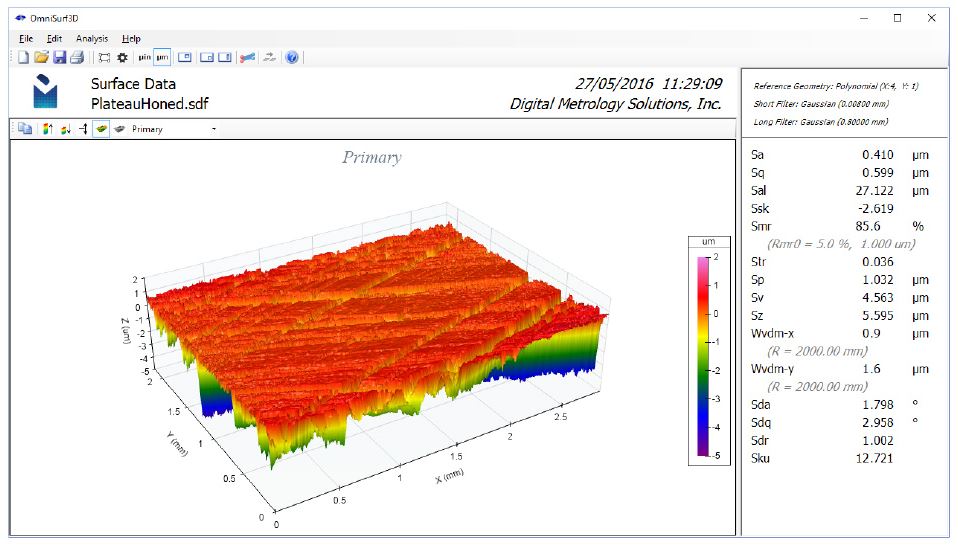

We get it. You need numbers. You need standard ISO Parameters as well as special ones that are tailored to your needs. OmniSurf3D has you covered!

NOTE: Not all parameters are shown.

Going even deeper (beyond the easy stuff)

What about handling the hard stuff? Don’t worry – OmniSurf3D delivers for you there too!

Feature Detection and Feature Parameters

Are you interested in the new ISO 25178 feature detection (Wolf Pruning) methods and parameters?  OmniSurf3D has you covered! With its easy and interactive tools, OmniSurf3D  helps you to quickly take advantage of these powerful techniques for analyzing hills, dales, pits, peaks, saddles, ridge lines and course lines.

Cropping the dataset

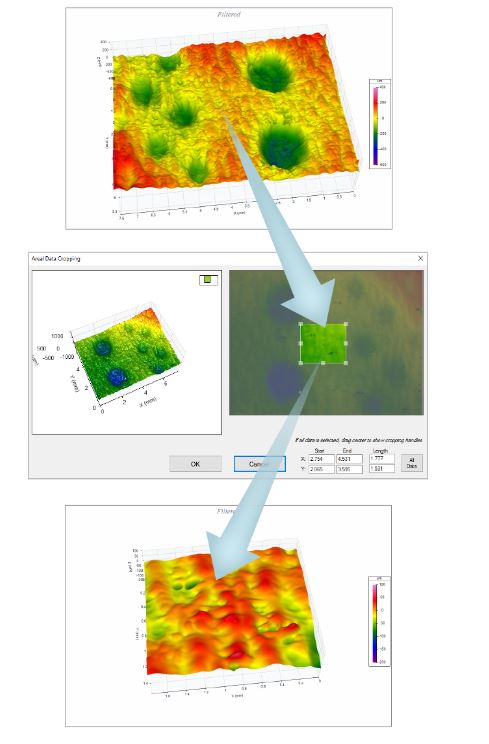

Sometimes, you are only interested in a region of the measured data. OmniSurf3D gives you the tools to quickly and intuitively choose the region that matters!

Slicing and Measuring

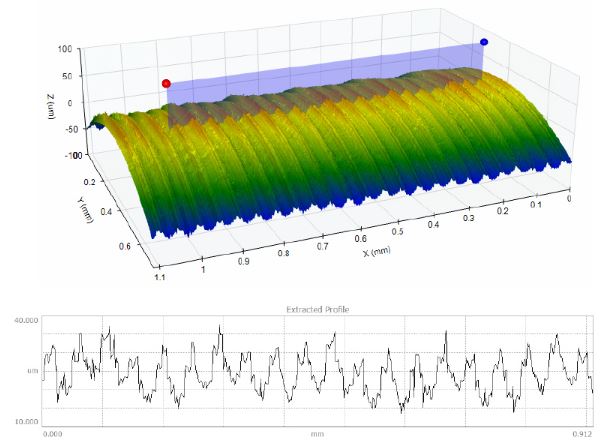

Sometimes you need to do some slicing to see what’s happening. OmniSurf3D’s dynamic slice tool makes it easy!

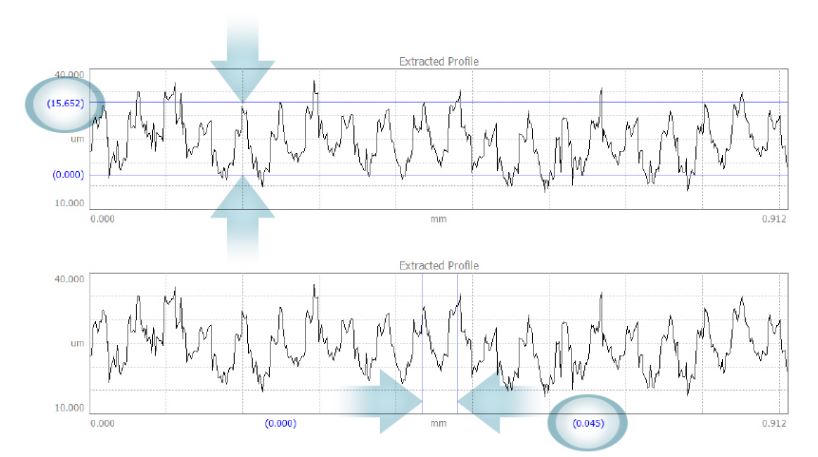

Let’s measure some heights and widths while where at it!

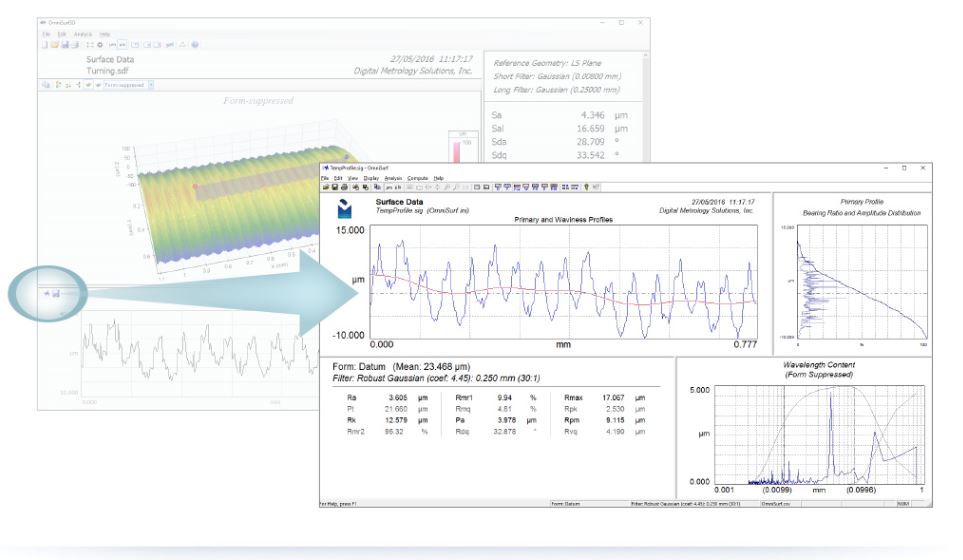

If that’s not enough profile analysis for you – one click will send the current profile to Digital Metrology’s world-renowned OmniSurf (2D) software package!

(Sold separately)



OmniSurf3D Details

The Data

OmniSurf3D handles data from most of the common 3D surface texture measuring instruments…including the universal, ISO “SDF” format. If your instrument’s file format isn’t supported, we will work with you to make it so.

Have a lot of data? Don’t worry. OmniSurf3D can “batch process” it for you. With just one click you can turn an entire folder of data into a spreadsheet. You can even have OmniSurf3D save all of the surface images as files for you as it goes.

The Computer

OmniSurf3D requires a 64-bit Windows operating system (Windows 7.1 or later) with the .NET Framework 4.6 (or later) installed.

The Bottom Line

OmniSurf3D combines a dynamic and engaging user experience, substantial processing horsepower and a simple and streamlined interface – all at a price so surprisingly low that the buying decision is one of the easiest you’ll ever make. In fact, there are no annual maintenance fees either. Even better – you get free upgrades for the lifetime of the software!
