MathMagic Pro Edition for Adobe InDesign™ for Windows
Thank you for choosing MathMagic, the ultimate equation editor on the planet!

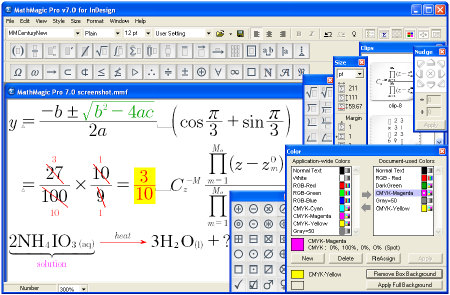

MathMagic Pro Edition for Adobe InDesign is an equation editor mainly for use with Adobe InDesign software in editing any mathematical expressions and symbols with WYSIWYG interface and various powerful features.
1. Installing
• Install MathMagic Pro for InDesign for Windows using the latest MathMagic Pro installer.
• Manually install MathMagic plug-in in the following location.
- copy "MathMagic CC" or "MathMagic CSx" folder itself from
\Program Files\MathMagic Pro Edition\Plug-ins\ folder
- and paste(or simply drag&drop) it into your
\Adobe InDesign CC folder\Plug-ins\ folder
or \Adobe InDesign CSx folder\Plug-ins\ folder
• Then, launch your InDesign application. Once the MahgMagic plugin is installed and loaded correctly, you should see.
InDesign menubar -> Plug-ins -> MathMagic sub menu.
• Then, please choose : InDesign menubar -> Plug-ins -> MathMagic -> Preferences dialog: click "Find" button to select the path to the external MathMagic Pro application, which is typically
\Program Files\MathMagic Pro Edition\MathMagic Pro 7.x InD.exe
• Then, all your initial setting should be done if you are running Windows XP.
• If running on Vista or Windows 7, please read above (* How to Install) to set the Admin setting in the Properties window of both MathMagic Pro application and InDesign appliation.
• Please read the License email or ReadMe First file for more information, located in
\Program Files\MathMagic Pro Edition\ folder
2. Creating Equations
• Launch Adobe InDesign application(CSx or CC).
• Make a new InDesign document or open a document.

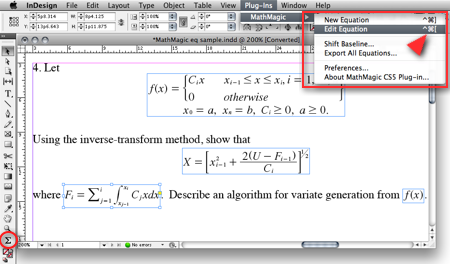

• Select the Plug-ins menu -> MathMagic sub-menu.
• Choose "New Equation" item to create an equation.
If the cursor is located in the text box, the equation will be inserted in the cursor position as an In-Line Graphic(ILG). Otherwise, the equation will be placed as an EPS graphic on where you click the mouse.
• You may select the Sigma tool button from the floating main toolbar to create an equation box, and then drag a rectangle in the document to specify the location of an equation once created by the external MathMagic Pro.
• You may also right button click while the cursor is in the text box, so that you can choose the "New Equation" from the contextual menu.
• If you either select "New Equation" menu or drag a rectangle with th Sigma tool, MathMagic Pro application will be launched, if not running already, and an empty equation editor window will be opened. In case MathMagic Pro application is not launched automatically within a few seconds, please launch the application manually from the following location.
\Program Files\MathMagic Pro Edition\MathMagic Pro 7.x InD.exe
• Enter any equation in the MathMagic editor window, and then Close(ctrl-W) or Save(ctrl-S) the window. This will send the equation to the InDesign document back.
3. Editing Equations
• Choose "Edit Equation..." item to edit the currently selected equation. Or, just double-click on the equation box to open it with the external MathMagic Pro application for editing. You may also control-click on the equation to bring up the contextual menu, after changing the cursor to the Arrow tool.
• After creating or editing of equation with the external MathMagic Pro, just press control-S and then the equation is placed in the InDesign document.
• The baseline of all equations will be automatically adjusted. But if you want to lower or raise the baseline, you may do so.
o just change the cursor to the arrow cursor and move the equation box by dragging to where you desire, or
o control-click on the equation box to bring up the contextual menu, and then select "Shift Baseline" item, or
o select an equation box and choose "Shift Baseline" menu from the MathMagic plug-in menu
4. Changing the Baseline and Bounding margins
• The baseline of all equations will be automatically adjusted. But if you want to lower or raise the baseline, you may do so.
o just change the cursor to the arrow cursor and move the equation box by dragging to where you desire, or
o control-click on the equation box to bring up the contextual menu, and then select "Shift Baseline" item, or
o select an equation box and choose "Shift Baseline" menu from the MathMagic plug-in menu
• You may also customize the bounding margin gaps(left, right, top, bottom) of the equation, by specifying other value from the last item of Define Spacing window.
5. Assigning Shortcut keys to MathMagic menu items
• Install MathMagic plug-in by the instruction
• Launch InDesign application and make sure that MathMagic plug-in is loaded under Plug-Ins menu.
• Select Edit -> Keyboard Shortcuts... menu item from InDesign's menubar.
• In the "Keyboard Shortcuts" dialog, click "Product Area" popup menu, and select "MathMagic" item.
• Assign your preferred shortcut key, such as "ctrl-shift-]" for "New Equation", "ctrl-shift-[" for "Edit Equation".
* System Requirements
• Pentium or Faster
• Windows XP SP2 or newer including Vista, 7, 8, 10
• Adobe InDesign™ CS3 ~ CS6, CC, CC 2014, CC 2015
• About 30MB of hard disk space for a complete installation
