ArCADia--EuroConnections 5 EN

A collection of programs for steel connections design.

Design and verify the capacity of typical uniplanar frames & lattice connections in steel structures according to the PN-EN 1993-1-8:2006 standard.

Welded or bolted connections in various joint types.

Possibility  to create a model for a rigid, semi-rigid or nominally pinned joint.

Various additional connection components can be used, depending on the specific connection type: side plate, fin plate, flange cover plate, landing cleat, end plate, base plate, stiffener plate, haunch, shear nib, gusset plate, etc.

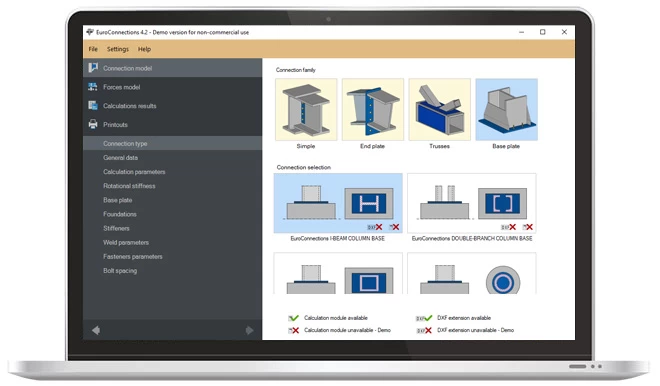

The program operates as a standalone mode, or as a design module for steel connection calculations in the ArCADia-RAMA program.

The program creates a bill of materials for connectors and other components used in the connection.

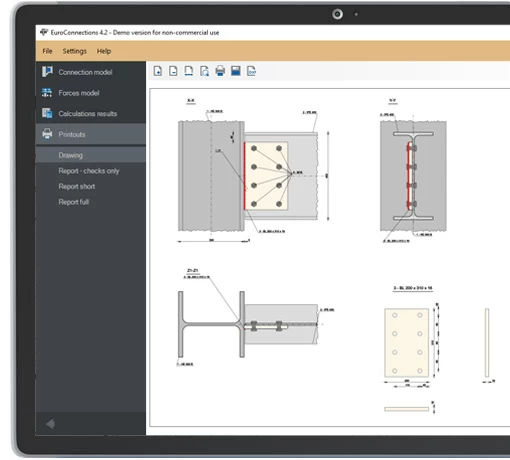

The program creates an advanced and dynamic sketch of the designed connection model, which can also be saved to an editable file in the DXF format.

Reports with the verification result in the RTF or PDF format can be created in four different detailed levels with the option of customizing their scope by the user.

The following types of connections are supported:

SIMPLE group:

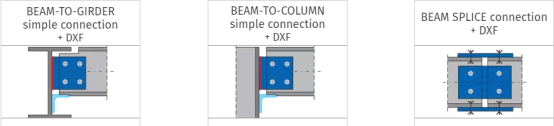

BEAM-TO-GIRDER simple connection +DXF

BEAM-TO-COLUMN simple connection +DXF

BEAM SPLICE connection +DXF



END PLATE group:

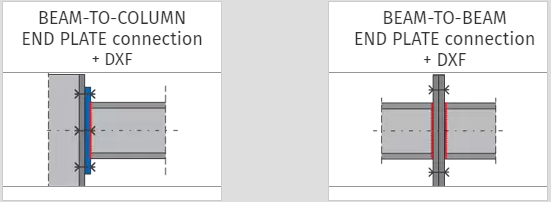

BEAM-TO-COLUMN END PLATE connection +DXF

BEAM-TO-BEAM END PLATE connection +DXF



TRUSSES group:

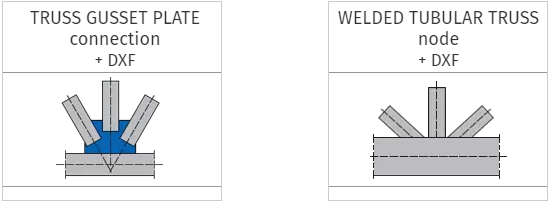

TRUSS GUSSET PLATE connection +DXF

WELDED TUBULAR TRUSS node +DXF



BASE PLATE group:

I-BEAM COLUMN BASE +DXF

DOUBLE-BRANCH COLUMN BASE +DXF

RECTANGULAR HOLLOW SECTION COLUMN BASE +DXF

CIRCULAR HOLLOW SECTION COLUMN BASE +DXF

Simple connection group

End plate connection group

Trusses connection group

Base plate connection group
